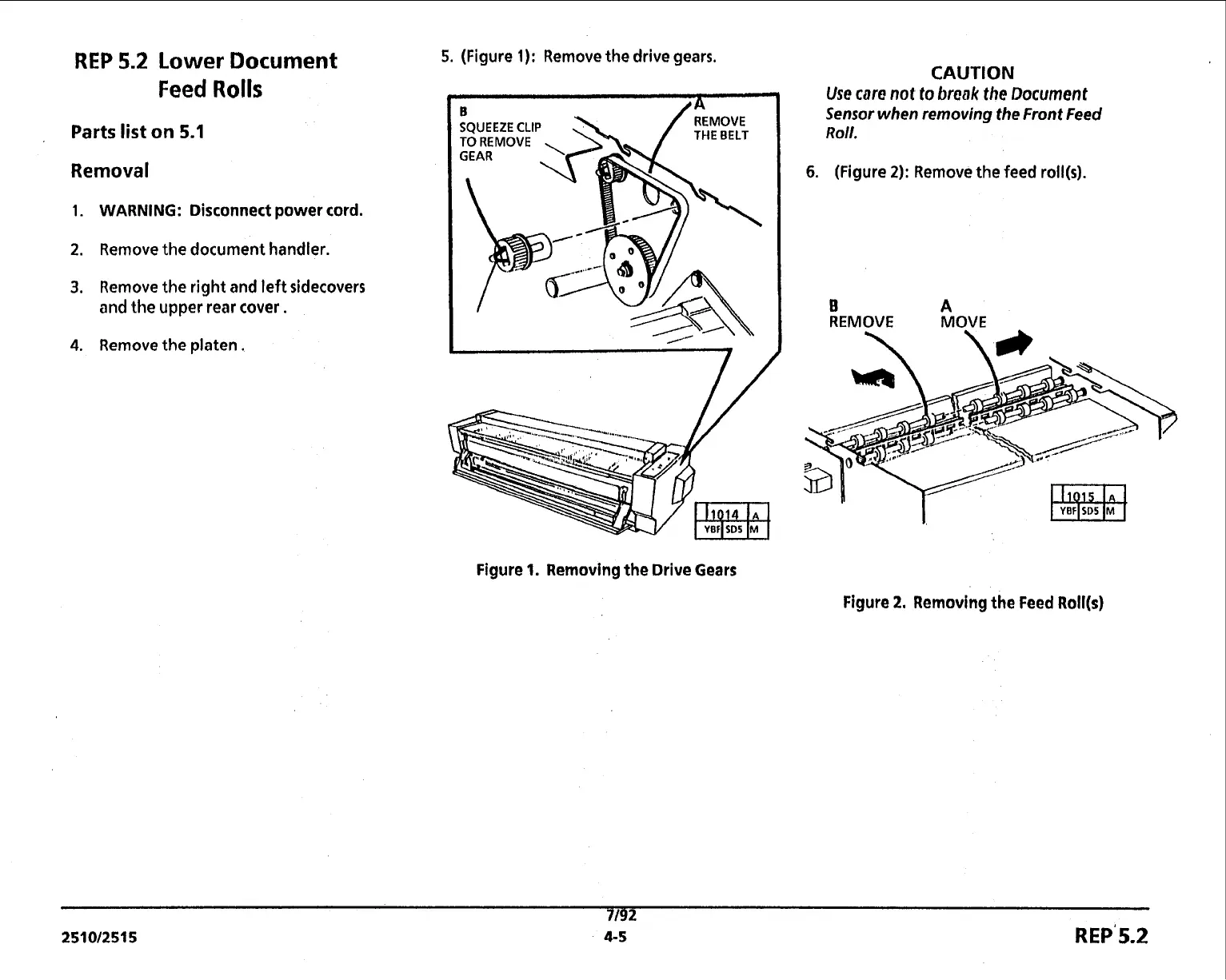

REP 5.2 Lower Document
5. (Figure 1): Remove the drive gears.
Feed Rolls
Parts list on 5.1
Removal
1. WARNING: Disconnect power cord.
2. Remove the document handler.
3. Remove the right and left sidecovers
and the upper rear cover.
4. Remove the platen.
SQUEEZE CLIP
TOREMOVE . \w
REMOVE
THE BELT
GEAR
'/4
CAUTION
Use care not to break the Document
Sensor when removing the Front Feed
Roll.
6. (Figure 2): Remove the feed roll(s).
B A
REMOVE MOVE
Figure 1. Removing the Drive Gears
Figure
2. Removing the Feed Roll(s)
