Xerox 2515

REP 10.3 Fuser Triac
I Parts List on PL 1 .I
Replacement
1. Cover the entire surface where the triac
mounts to the frame with a film of thermal
compound.
2. (Figure 1): Replace the triac.
A. C. NEUTRAL
RED, BLUE
GATE
- SMALL PIN
WHITE

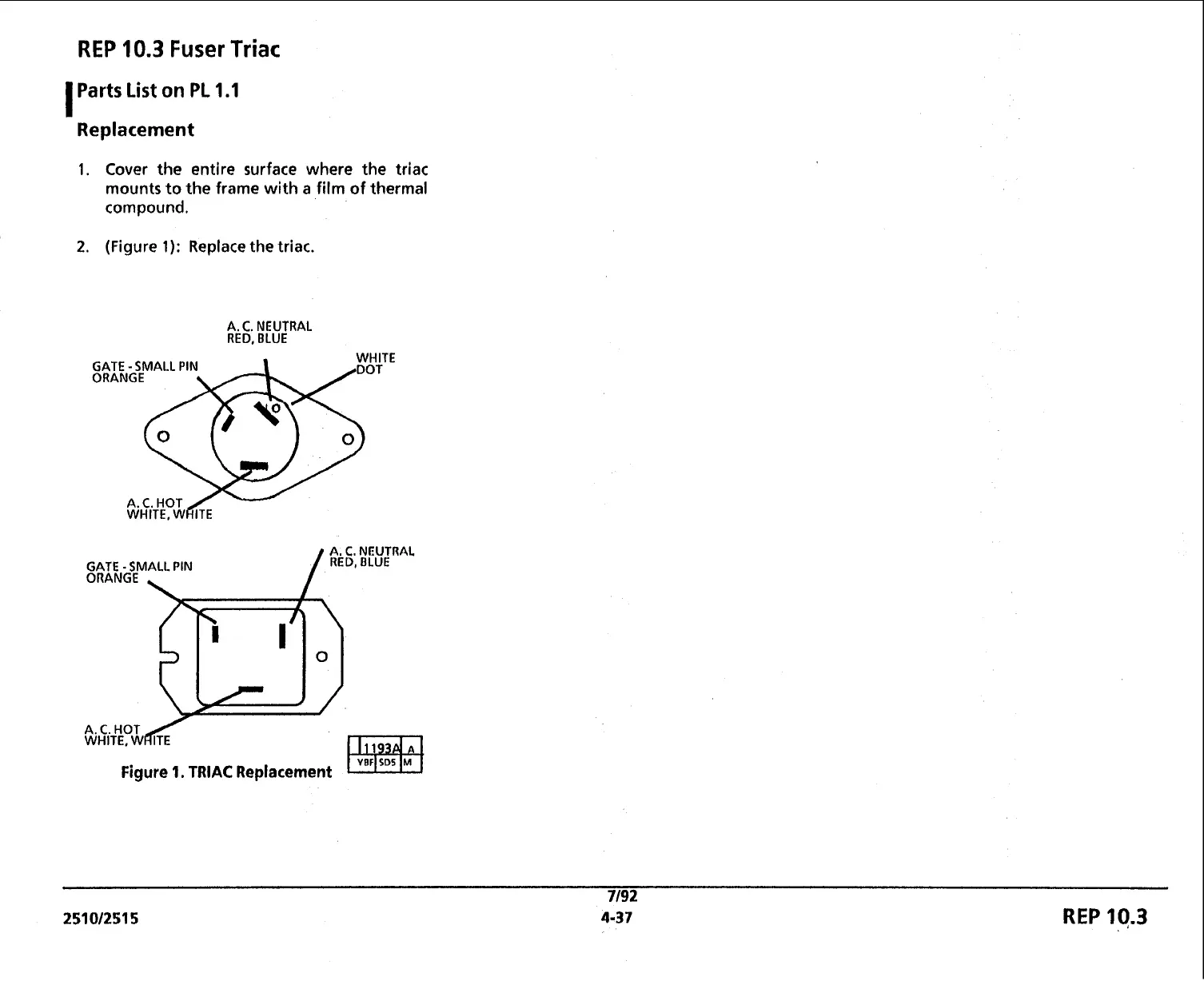

Figure 1. TRIAC Replacement
VBF SD5 M
m
NEUTRAL
BLUE
REP 10.3
