Xerox 2515 User Manual

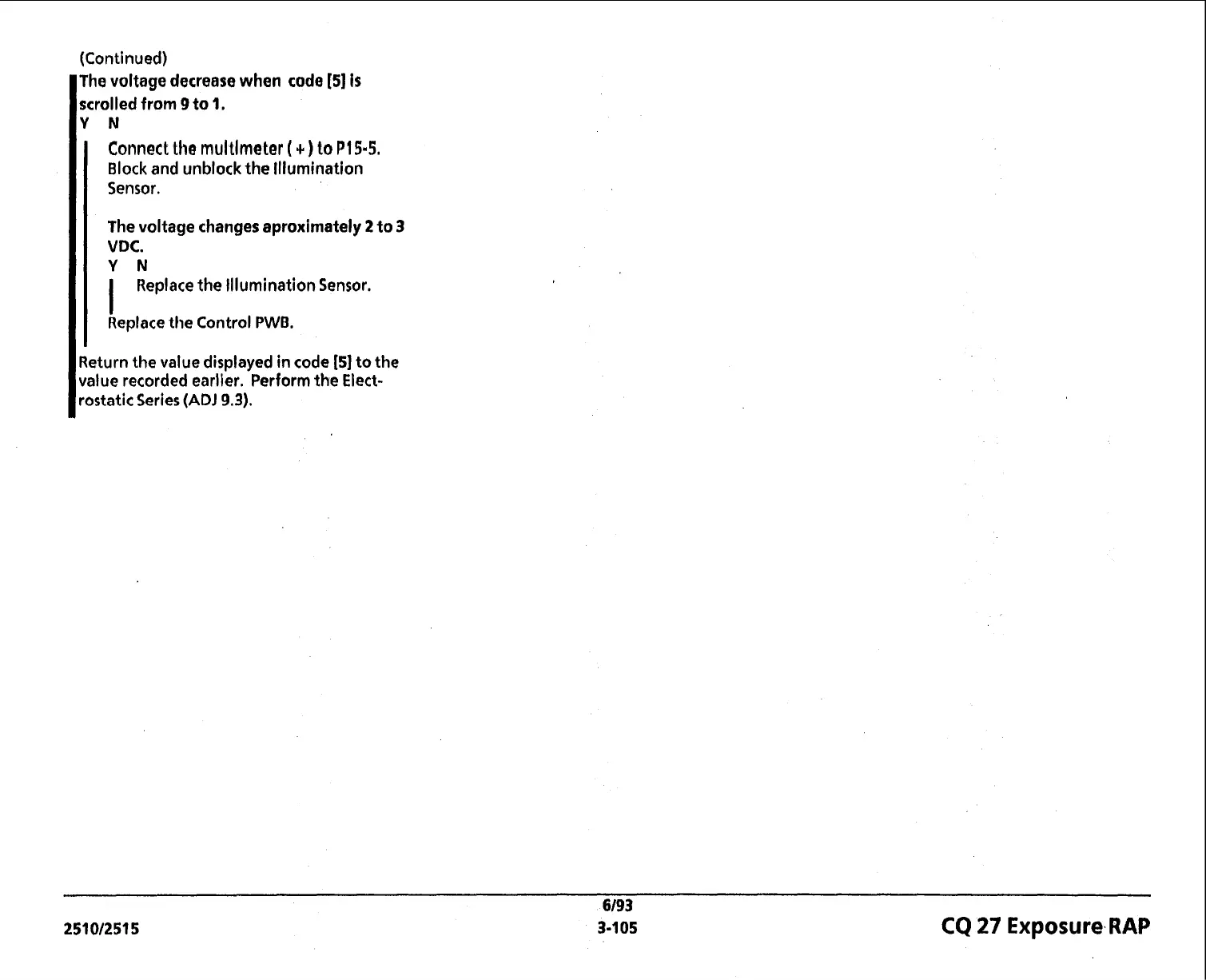

(Continued)
le voltage decrease
when code [5] is
rolled from 9 to 1.
N
Connect the multlmeter ( +) to PI54
Block and unblock the lllumination
Sensor.
The voltage changes aproximately 2 to 3
VDC.
Y N
I
Replace the lllumination Sensor.
Replace the Control
PWB.
turn the value displayed in code [5] to the
lue recorded earlier. Perform the Elect-
static Series
(ADJ 9.3).
6/93
251012515 3-1 05
CQ 27 Exposure RAP
