Replacement

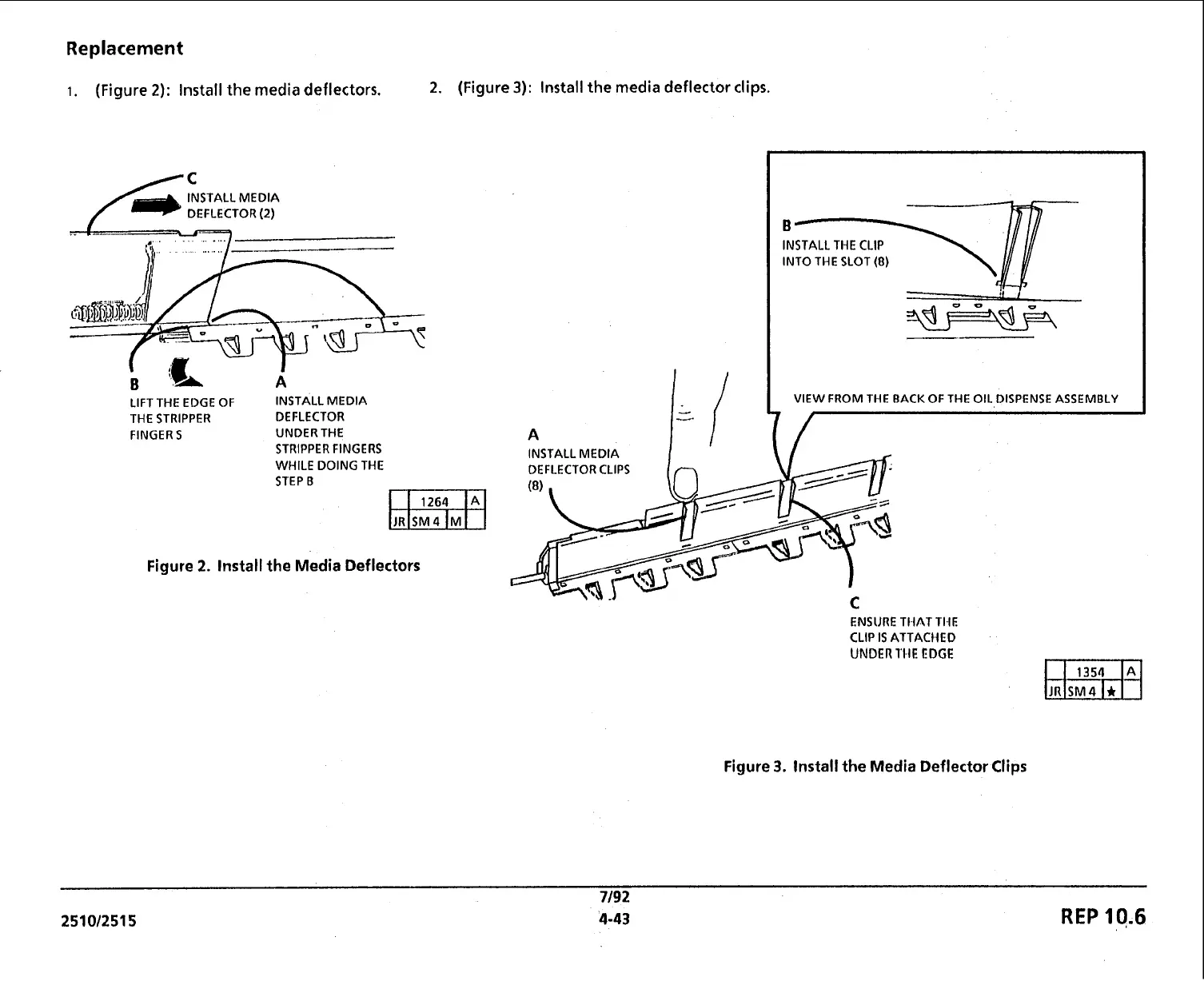

1. (Figure 2): Install the media deflectors. 2. (Figure 3): Install the media deflector clips.
INSTALL MEDIA
DEFLECTOR
(2)
LIFT THE EDGE OF
INSTALL MEDIA
THE STRIPPER DEFLECTOR
FINGERS UNDER THE
STRIPPER FINGERS
WHILE DOING THE
STEP
B
INSTALL THE CLlP
INTO THE SLOT
(8)
VIEW FROM THE BACK OF THE OIL DISPENSE ASSEMBLY
:
Figure 2. lnstall the Media Deflectors
ENSlJRE THAT THE
CLlP
IS ATTACHED
UNDER l'l-IE EDGE
Figure 3. lnstall the Media Deflector Clips
REP 10.6
