NOTE: STEP2A: Ensure that the edge of the
2. (figure 4): Install the oil pads.
plastic cover is under the edge of the
extrusion.
NOTE: Ensure that the wick is not wrinkled
and that the wick edge is
a minimum of
518 inch (14mm).
3. (Figure 5): Insert the wick edge under the
plastic cover.
NOTE: STEP 3 B: If the plastic cover is lifted
too far, the narrow edge will come out
from under the extrusion edge.
PLASTIC COVER
L-
.. .
A
INSTALL OIL PADS (2) AND
b
PLASTIC EDGE ON WICK UNDER
THE EDGE OF THE EXTRUSION
INSTALL THE EDGE
OF THE OIL
PADS
(2) UNDER THE EDGE OF
TllE EXTRUSION (FULL LENG'TII)

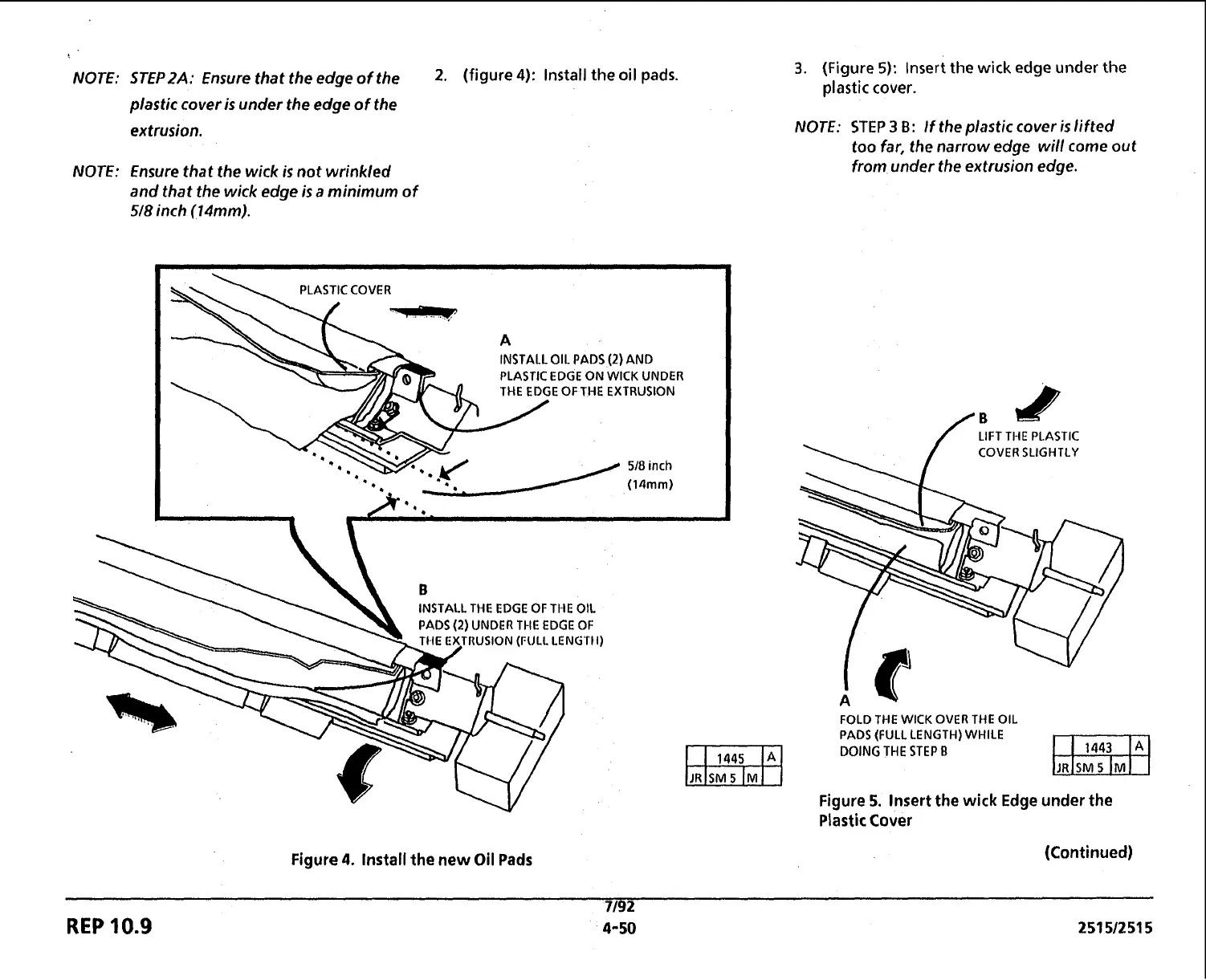

Figure 4. Install the new Oil Pads
FOLD THE WlCK OVER THE OIL
PADS (FULL LENGTH) WHILE
DOING THE STEP
B
Figure 5. Insert the wick Edge under the
Plastic
Cover
(Continued)
