CAUTION

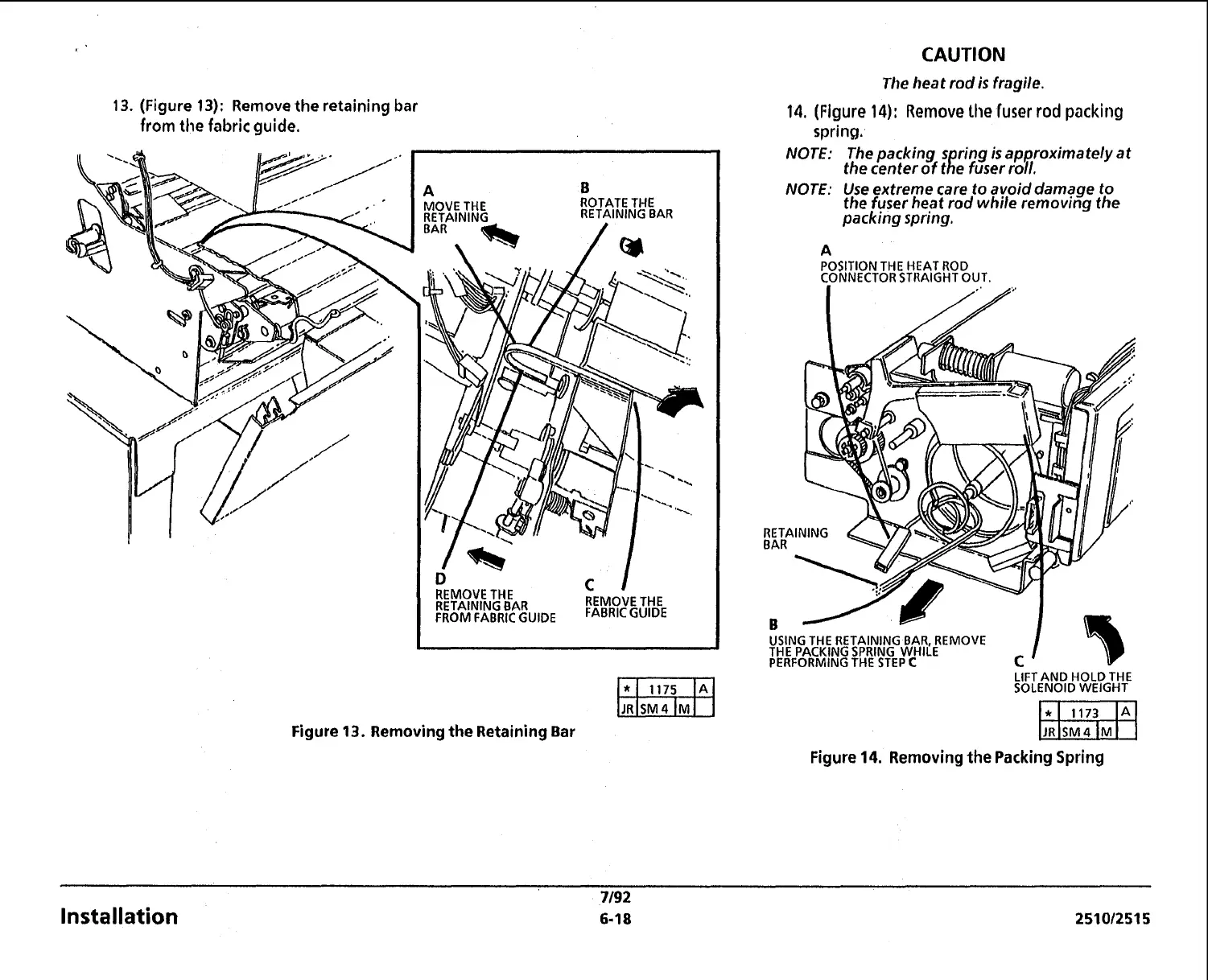

13. (Figure 13): Remove the retaining bar
from
the fabric guide.
REMOVE THE
L #
RETAINING BAR REMOVE THE
FROM FABRIC GUIDE
Figure 13. Removing the Retaining Bar
The heat rod
is fragile.
14. (Figure 14): Remove the luser rod packing
spring.
NOTE: The packing s ring
is approximately at
the center of tRe fuser roll.
NOTE: Use extreme care to avoid damage
to
the fuser heat rod while removing the
packing sprrng.
POSITION THE HEAT ROD
CONNECTOR STRAIGHT OUT.
LIFT AND HOLD THE
SOLENOID WEIGHT
Figure 14. Removing the Packing Spring
