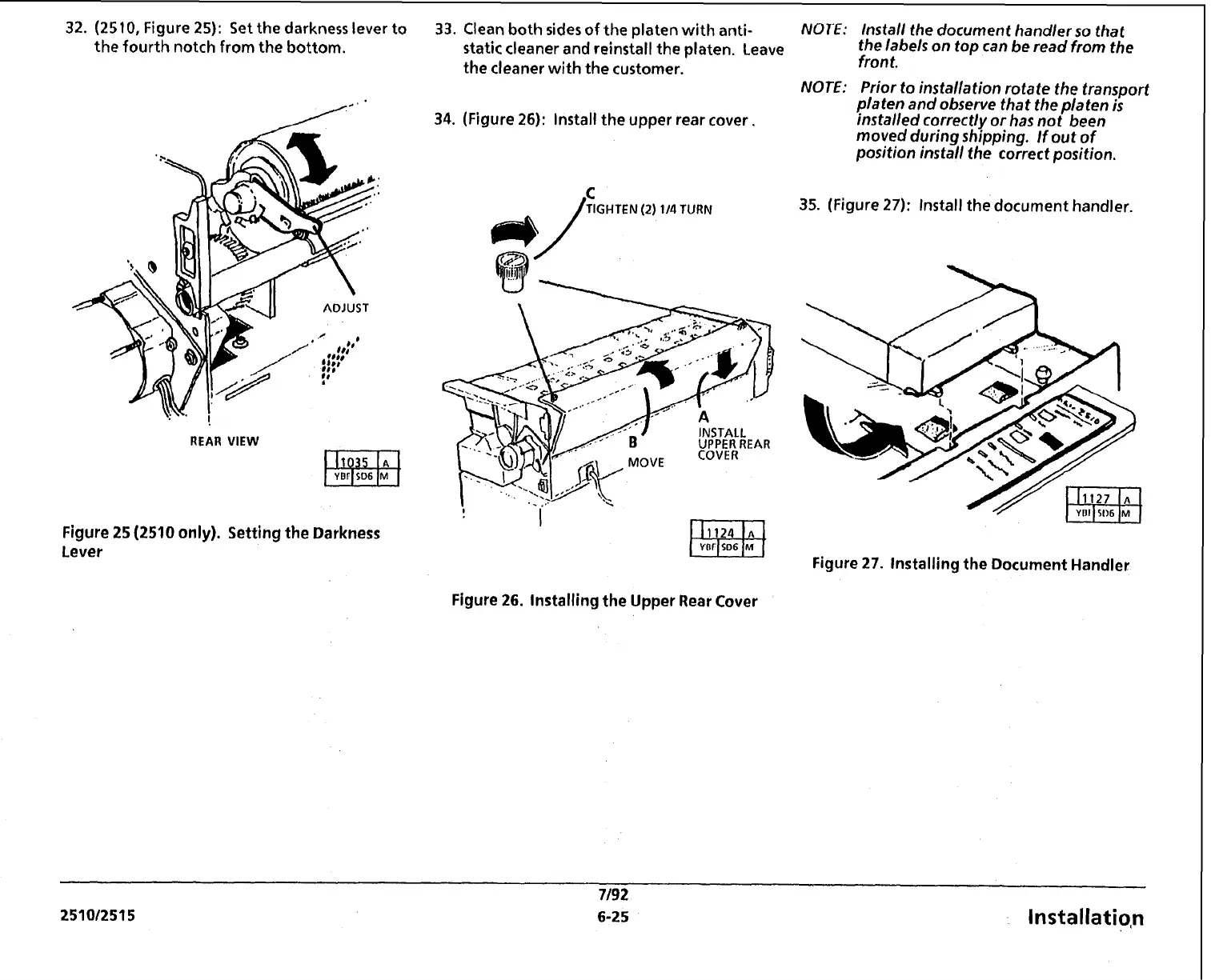

32. (2510, Figure 25): Set the darkness lever to
the fourth notch from the bottom.
33. Clean both sides of the platen with anti-
static cleaner and reinstall the platen. Leave
the cleaner with the customer.
NOTE: Install the document handler so that
the labels on top can be read from the
front.
REAR VIEW
Figure 25 (2510 only). Setting the Darkness
Lever
34. (Figure 26): Install the upper rear cover.
TIGHTEN (2) 114 TURN
pe lC
Figure 26. Installing the Upper Rear Cover
NOTE: Prior to installation rotate the transport
platen and observe that the platen is
installed correctly or has not been
moved during shipping.
If out of
position install the correct position.
35. (Figure 27): lnstall the document handler.
u
Figure 27. Installing the Document Handler
