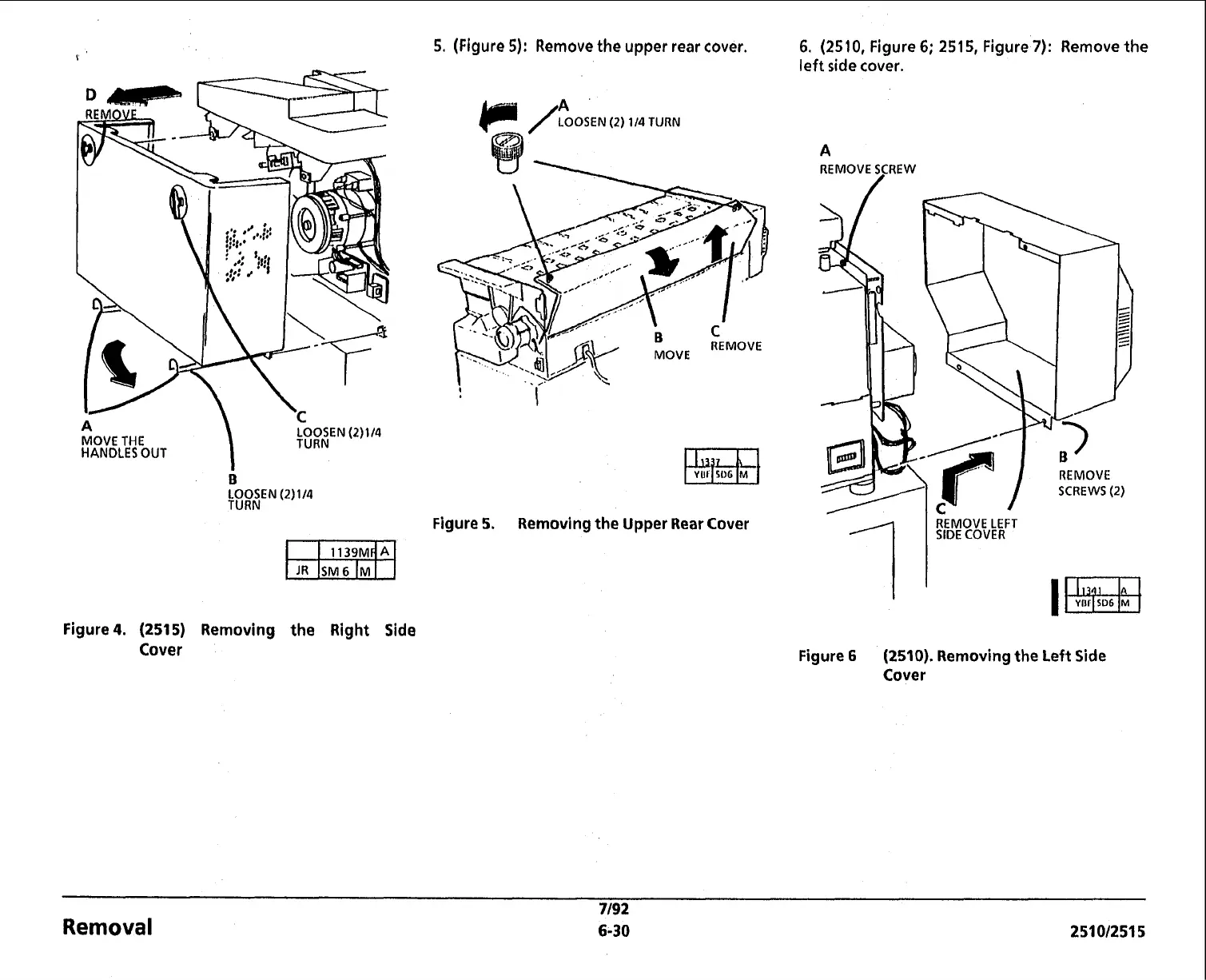

5.
(Figure
5):
Remove the upper rear cover.
LOOSEN
(2)
114 TURN
A
\.
MOVE THE
LOOSEN
(2)1/4
HANDLES
OUT
\
TURN
B
LOOSEN (2)114
TURN
Figure 5.
Removing the Upper Rear Cover
Figure4. (2515) Removing the Right
Side
Cover
6.
(25
10,
Figure
6;
25
15,
Figure
7):
Remove the
left side cover.
A
REMOVE SCREW
REMOVE LEFT
SIDE COVER
Figure
6
(2510). Removing the Left Side
Cover
7/92
Removal
6-30
251012515
