Xerox 2515

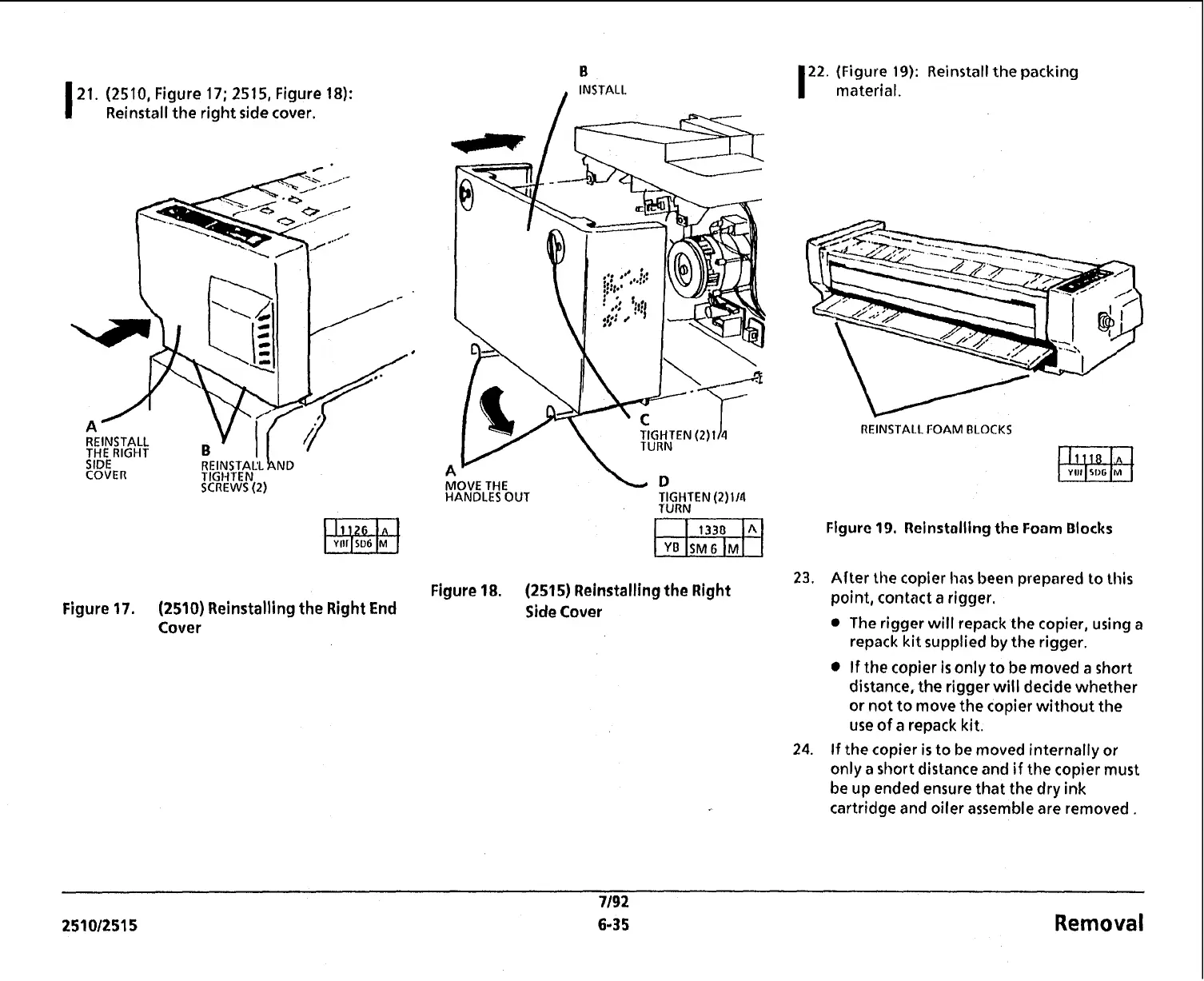

21. (2510, Figure 17; 251 5, Figure 18):
I Reinstall the right side cover.
Figure
17. (2510) Reinstalling the Right End
Cover
MOVE THE
HANDLES OUT TIGHTEN (2)~
TURN
Figure 18. (2515) Reinstalling the Right
Side Cover
22. (Figure 19): Reinstall the packing
I material.
REINSTALL FOAM BLOCKS
Flgurc 19. Reinstalling the Foam Blocks
23. After the copier has been prepared to this
point, contact
a rigger.
The rigger will repack the copier, using a
repack kit supplied by the rigger.
If the copier is only to be moved a short
distance, the rigger will decide whether
or not to move the copier without the
use of
a repack kit.
24. If the copier is to be moved internally or
only
a short distance and if the copier must
be up ended ensure that the dry ink
cartridge and oiler assemble are removed
.
7/92
251012515 6-35 Removal
