Connecting network cable to the Fiery EXP4110
This section includes an illustration of the Fiery EXP4110 back panel, and provides
information about connecting the Fiery EXP4110 to the network.

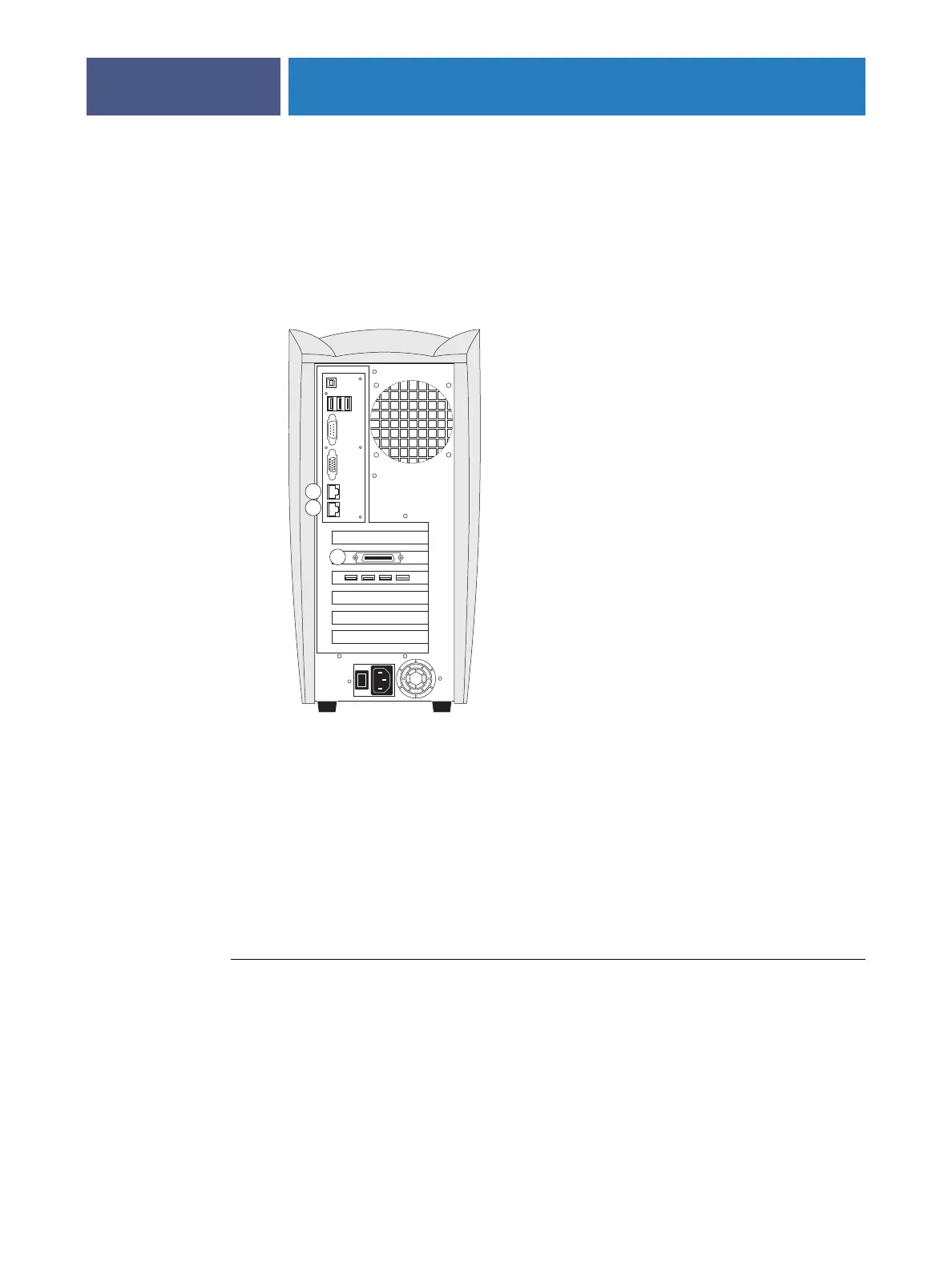

Back view of the Fiery EXP4110
Ethernet connection
For Ethernet connections, the Fiery EXP4110 supports Unshielded Twisted Pair UTP
(Unshielded Twisted Pair) cabling for these network speeds:
• 10BaseT: Category 3 or higher
• 100BaseT: Category 5 or higher (4-pair/8-wire, short-length)
• 1000BaseT: Category 5e or higher (4-pair/8-wire, short-length)
The cable uses an RJ-45 connector that plugs into the RJ-45 socket on the Fiery EXP4110.
TO CONNECT TO THE ETHERNET BOARD
• Connect the network cable to the network connector (RJ-45) on the back of
the Fiery EXP4110.
1 Network connector
2 Not used
3 Printer connector
2
3
1
