CClleeaarriinngg JJaammss iinn tthhee TTrrii--FFoolldd MMoodduullee
Clearing Jams at Area 2a in the Tri-Fold Module

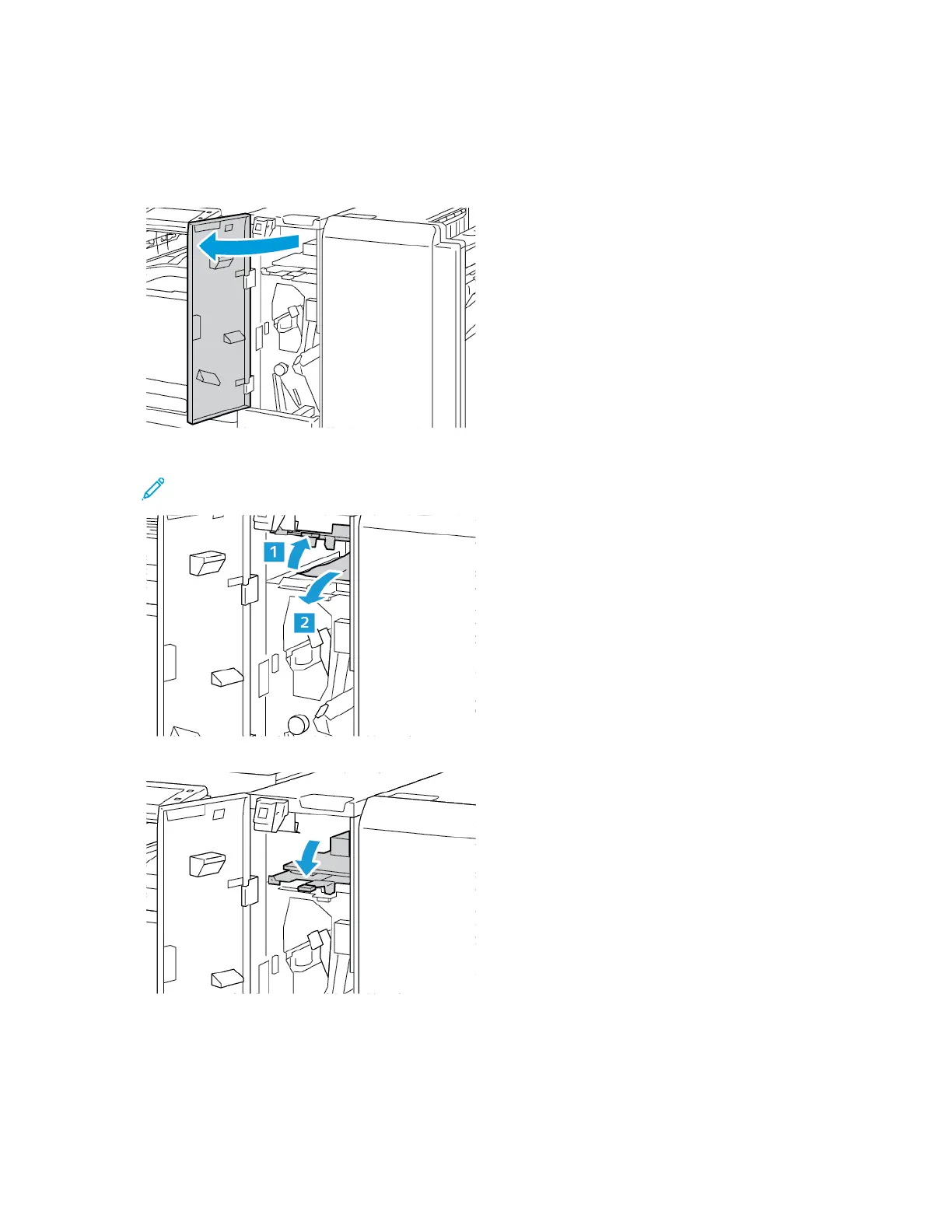

1. Open the front door of the tri-fold module.
2. Lift handle 2a, then carefully remove the jammed paper.
Note: If the paper is torn, remove all torn pieces of paper from the folder.
3. Return handle 2a to the original position.
4. Close the front door of the tri-fold module.
