Xerox
®
DocuMate
®
3220
User’s Guide
194

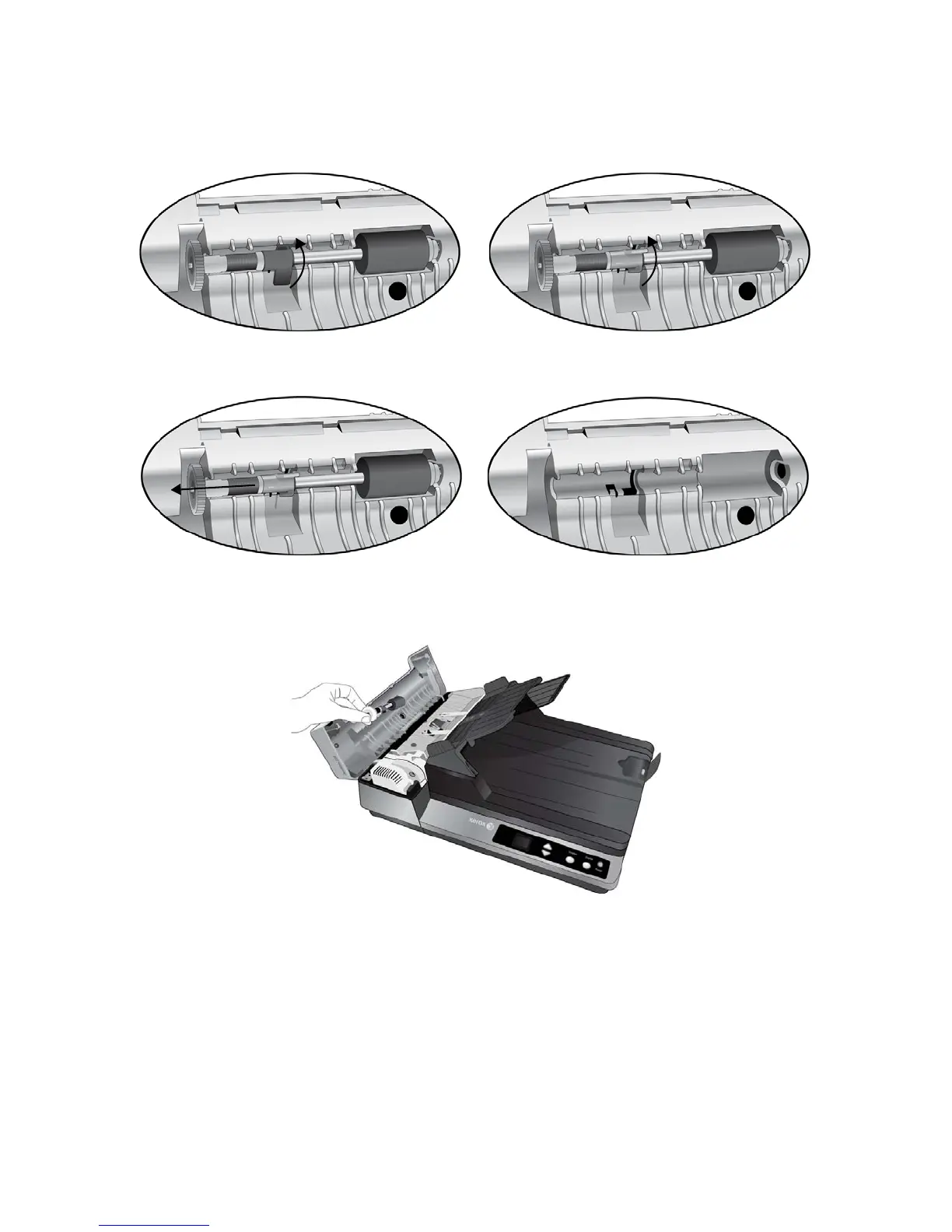

3. The roller is held in place with a lock tab that rotates to lock and unlock it. To unlock the tab, rotate
it upward until the small lock flange is completely free.
4. Remove the roller from the scanner and discard it, it cannot be repaired.
5. Before installing the new roller, clean any dust that may have gotten on it during shipping.
6. Insert the right end of the roller into its housing socket in the scanner.
