Xerox DocuMate 3460
User’s Guide
157

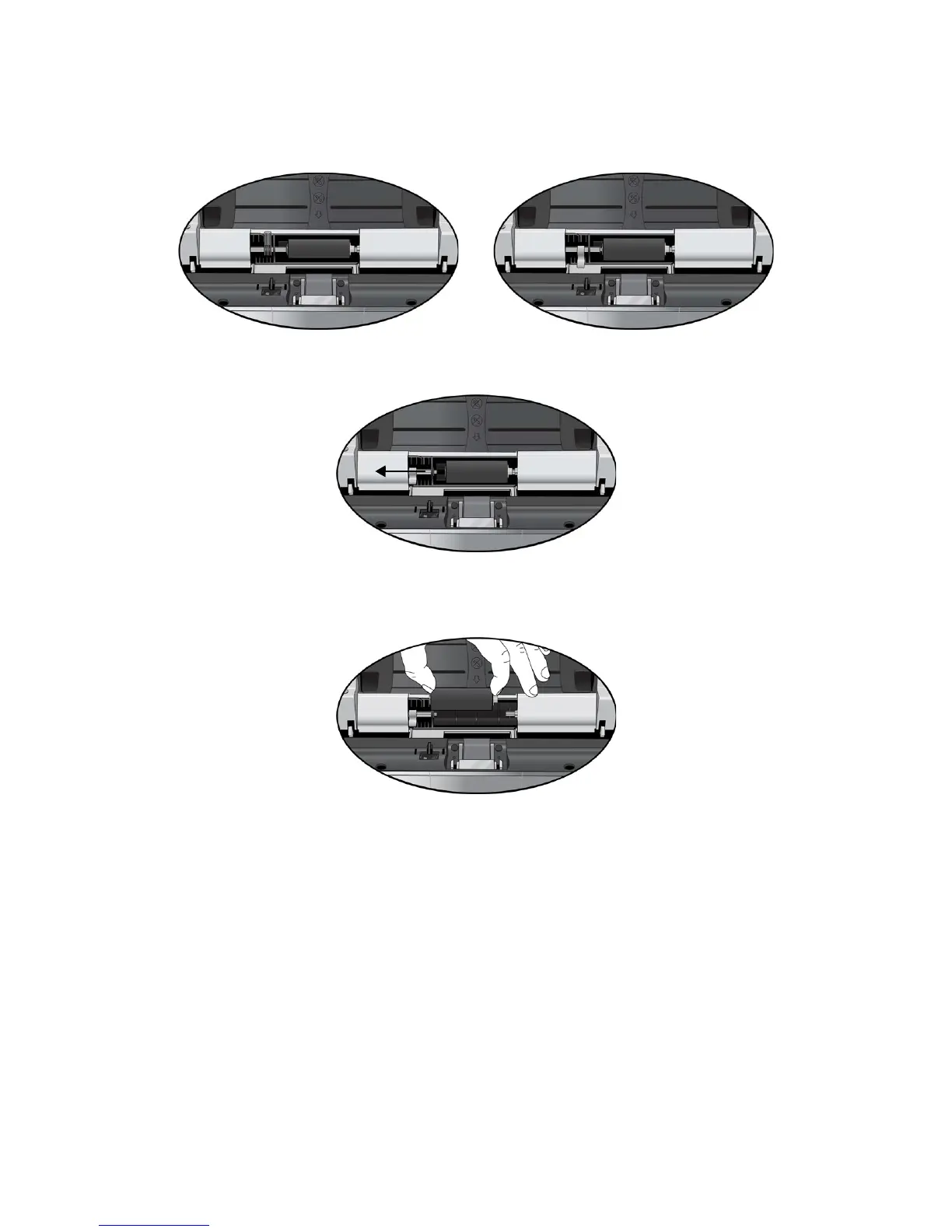

3. The roller is held in place with a lock tab that rotates to lock and unlock it. To unlock the tab, rotate
it down until the small lock flange is completely free.
4. Use the lock flange to slide the silver bar to the left to release the bar from the feed roller.
5. Slide the roller to the left to release it from the bar and pins on the right. Remove the roller from
the scanner and discard it, it cannot be repaired.
6. Before installing the new roller, clean any dust that may have gotten on it during shipping.
