Xerox DocuMate 6480 User Manual

Loading Documents to Scan Xerox
®
DocuMate
®
6460 / 6480
User Guide 27

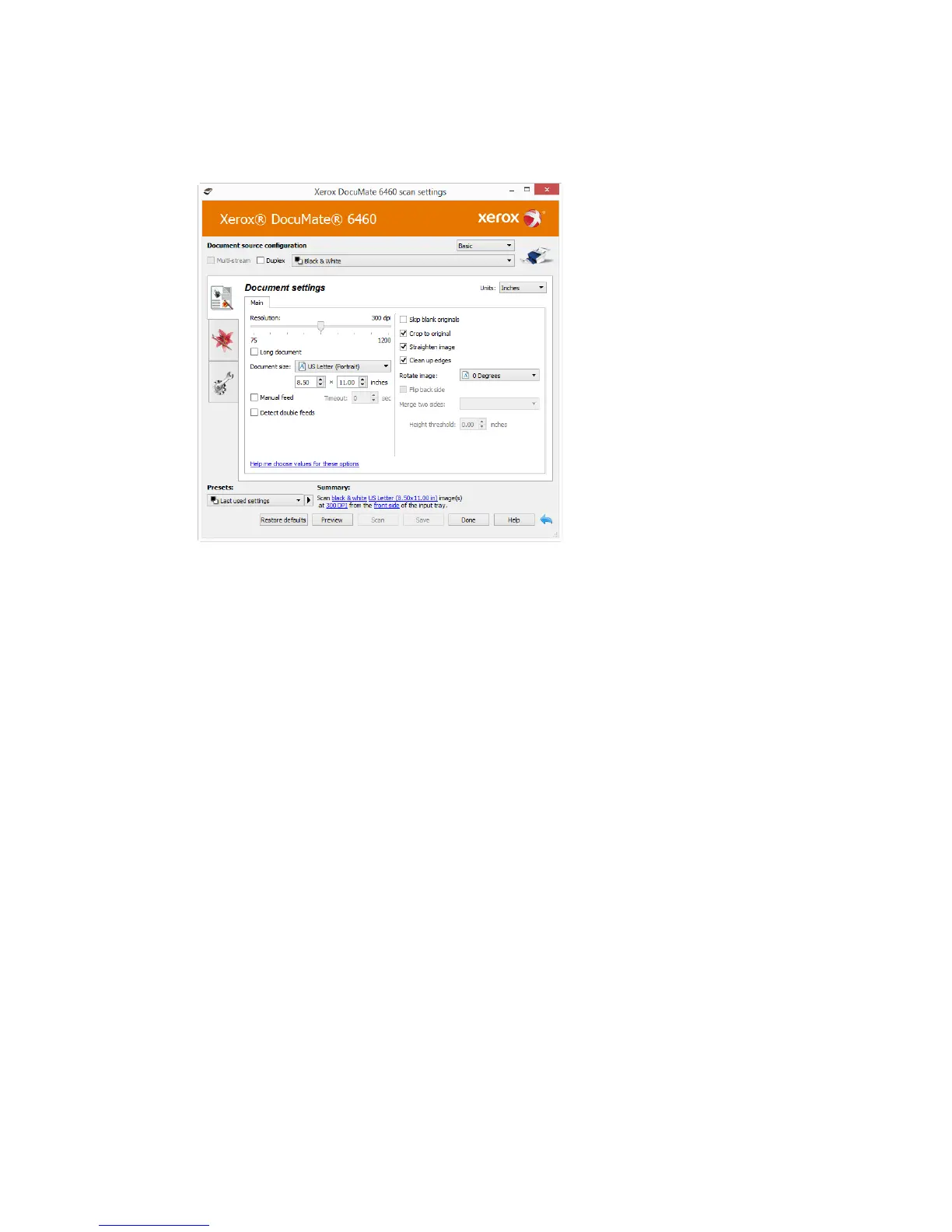

• TWAIN and WIA Interface—This option uses your scanner’s TWAIN interface to scan.
Select scanning options before scanning, put the document in the scanner, then click the
Scan button in the TWAIN interface window.
Please see the TWAIN Scanning Guide on the installation disc for instructions. You can also
click the Help button in the TWAIN interface to open the instructions in an Internet browser.
• ISIS Interface—This option uses the ISIS interface for scanning. Please refer the user
manual for your ISIS scanning application for instructions on scanning with the ISIS interface.

Xerox DocuMate 6480 Specifications

General

Media thickness (min)	1.25 mm
Maximum scan area (ADF)	216 x 5994 mm
Minimum scan area (ADF)	51 x 51 mm
Scanning media types supported	Photo paper, Plastic Card
Maximum ISO A-series paper size	A4
Auto Document Feeder (ADF) media weight	75 - 90 g/m²
Scanner type	ADF scanner
Product color	Blue, White
Built-in display	Yes
Auto document feeder (ADF) input capacity	120 sheets
Film scanning	No
Maximum scan size	241 x 5994 mm
Output color depth	24 bit
Output grayscale depth	8 bit
Output monochrome depth	1 bit
ADF scan speed (b/w, A4)	80 ppm
Optical scanning resolution	600 x 600 DPI
Duplex ADF scan speed (b/w, A4)	160 ipm
Sensor type	CCD
Scan drivers	ISIS, TWAIN, WIA
Daily duty cycle (max)	10000 pages
USB version	3.2 Gen 1 (3.1 Gen 1)
Standard interfaces	USB 3.2 Gen 1 (3.1 Gen 1)
Cables included	AC, USB
Minimum RAM	2048 MB
Minimum processor	Intel Pentium IV
Minimum storage drive space	350 MB
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Sustainability certificates	ENERGY STAR
Power supply type	AC
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	168 mm
Width	316 mm
Height	191 mm
Weight	4700 g
