Duplex Combo Scanner Assemble the Scanner
3-2 User Guide

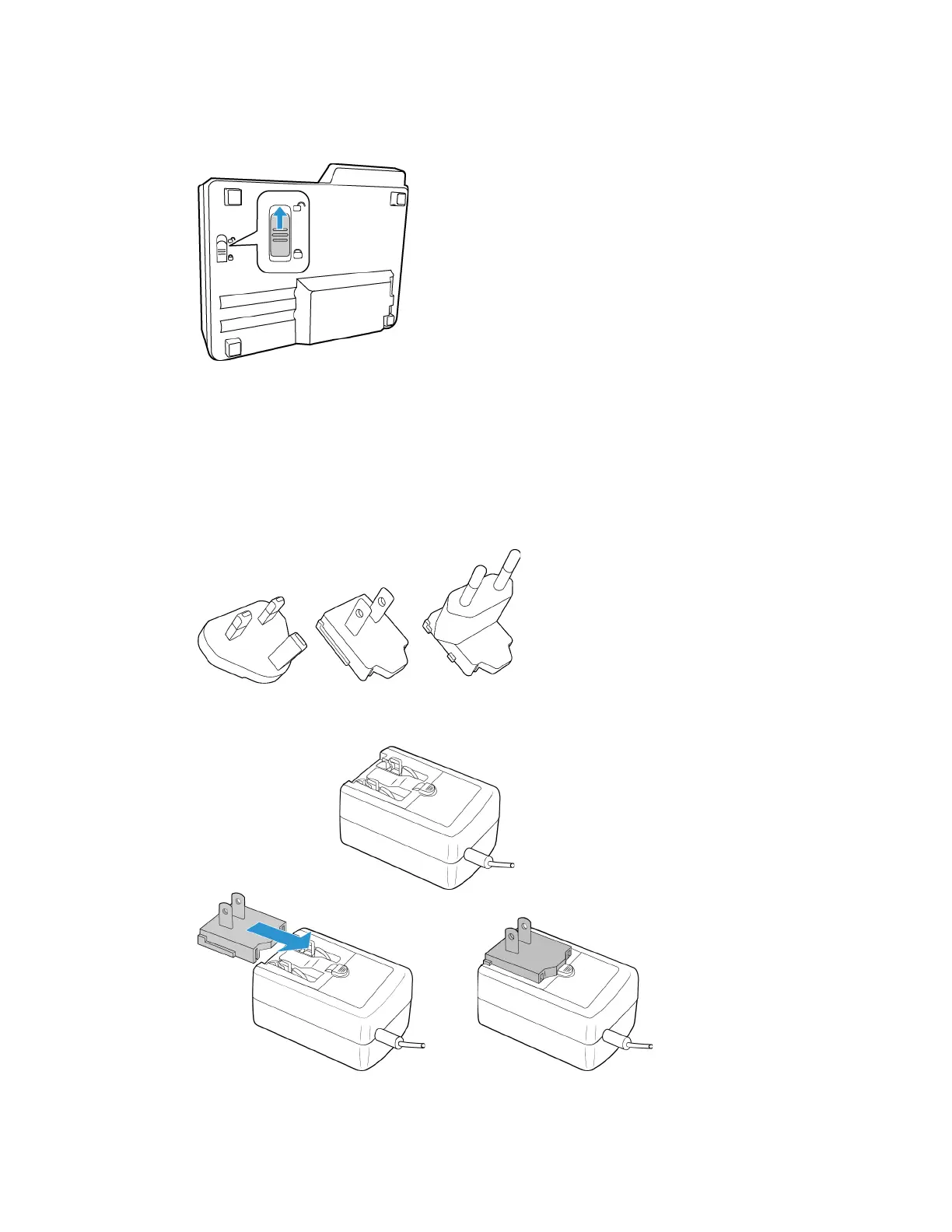

5. Slide the locking tab on the bottom of the scanner to its unlocked position. The scanner will
not scan when locked.
Connect the Power Cord
Note: Only use the power supply (WA-36A24R made by APD) included with your scanner.
Connecting any other type of power supply may damage your scanner, and will void its warranty.
Assemble the power adapter:
1. Select the power plug adapter that is appropriate for the wall outlet in your country.
2. Slide the power plug adapter into the power supply base.
3. Plug the power supply into the power port on the scanner.
U.K., North America, Europe
