Duplex Combo Scanner Maintenance
6-6 User Guide

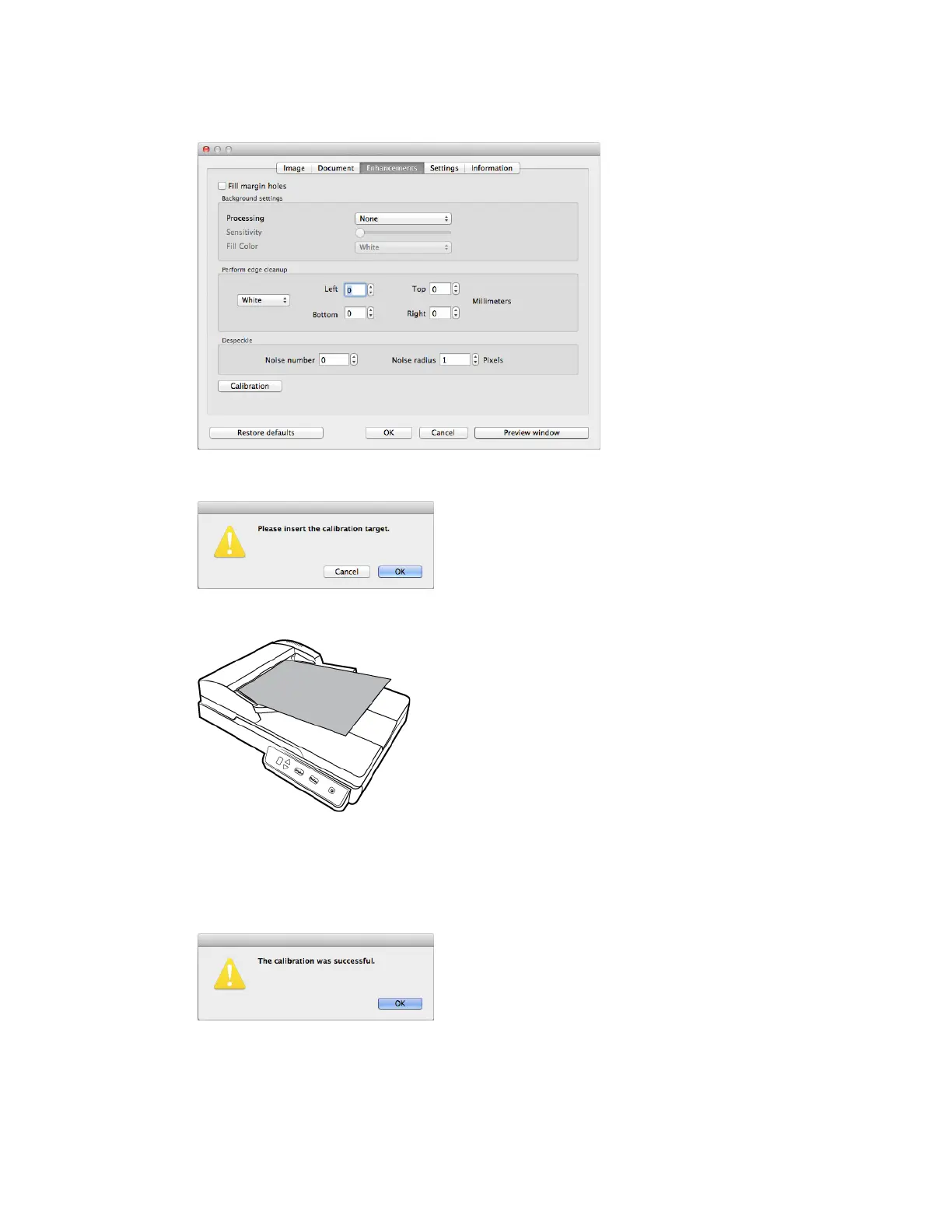

2. Click on the Enhancements tab.
3. Click on the Calibration button to start the calibration utility.
4. Place the calibration page in the scanner as shown in the following image.
5. The scanner pulls in the calibration page and feeds it slowly through the paper path.
6. When calibration is complete the scanner will clear the calibration page out of the scanner.
Do not forcefully pull the page out of the scanner, the scanner will release the page when it
has fully exited out of the scanner.

Xerox Duplex Combo Specifications

General

ADF Capacity	35 sheets
Connectivity	USB 2.0
Color Depth	24-bit
Output Formats	PDF, JPEG, TIFF
Supported Operating Systems	Windows, macOS
Optical Resolution	600 dpi
Maximum Scan Size	8.5 x 14 inches
