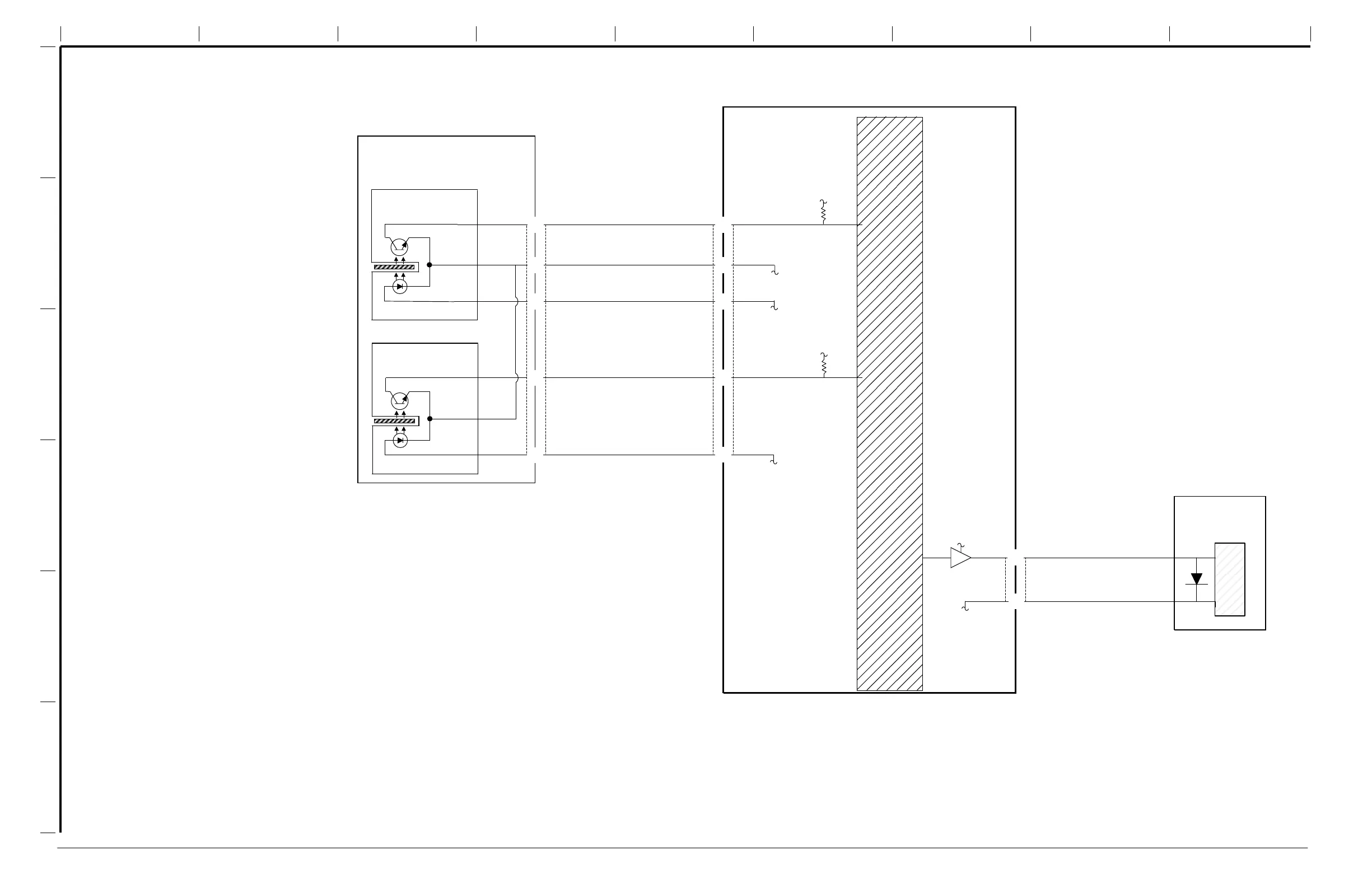

7.1 PAPER FEED AND REGISTRATION
A B C D E F G H J
1
2
3
4
5
6
PL 1.1
MAIN PWB
DC COM
+24 VDC
1
J8 P8
2
FEED CLUTCH ON
(L) +24 VDC
PL 3.3
FEED
CLUTCH
DC COM
+3.3 VDC
+3.3 VDC
+3.3 VDC
+3.3 VDC
3
2
5
1
SENSORCN
PAPER AT FEED
SENSOR (L) +3.3 VDC
PAPER AT REG
SENSOR (L) +3.3 VDC
DC COM
+3.3 VDC
+3.3 VDC
PL 3.3
FEED SENSOR PWB
3
1
2
CN1
4
5
WIDTH SENSOR
FEED SENSOR
