Xerox® Phaser® 3020 Printer Service Manual
PL 3.7
Parts Lists

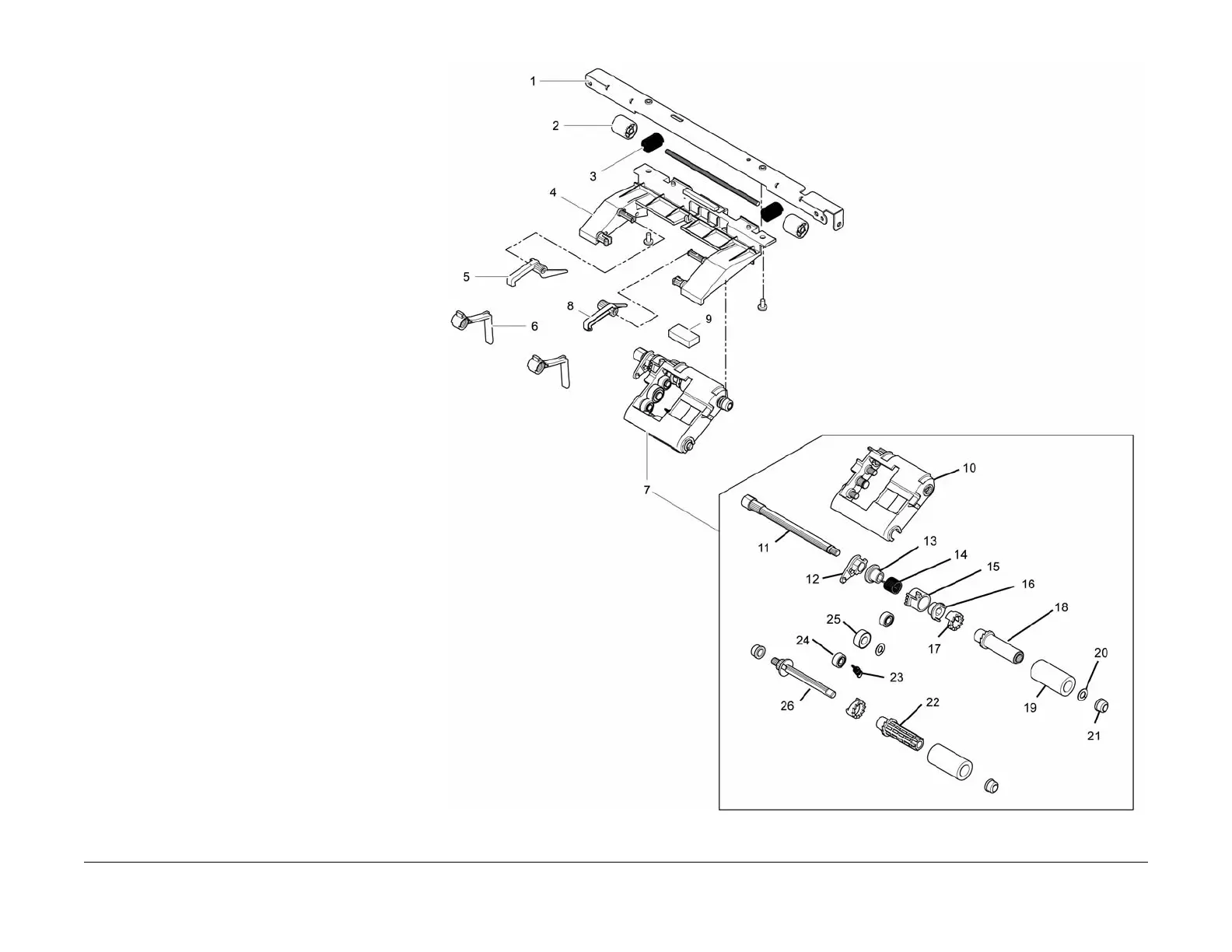

PL 3.7 Paper Feed Assembly
Item Part Description
1 – Paper Feed Holder
2 – Feed Roller
3– Spring
4 – Guide Plate
5 – Latch
6 – Paper Stopper
7 130N01757 Feed Rolls Assembly
8 – Latch
9 – Damper Sponge
10 – Feed Rolls Housing
11 – Feed Rolls Shaft
12 – Shaft Holder
13 – Bushing
14 – Spring
15 – Collar
16 – Joint Gear
17 – Pick Up Clutch
18 – Bushing
19 – Pick Up Roller
20 – Plain Washer
21 – Bushing
22 – Sleeve
23 – Spring
24 – Pick Up Gear
25 – Feed Gear
26 – Drive shaft Roller
