REP 1.12
Repairs
REP 1.12 Feed Sensors PWB and Actuators
Parts List on PL 3.3
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Remove the Rear Cover (REP 1.3).
3. Removing the Feed Sensor PWB (Figure 1):
a. Unlatch and remove the Sensor PWB.
b. Disconnect the connector (1).

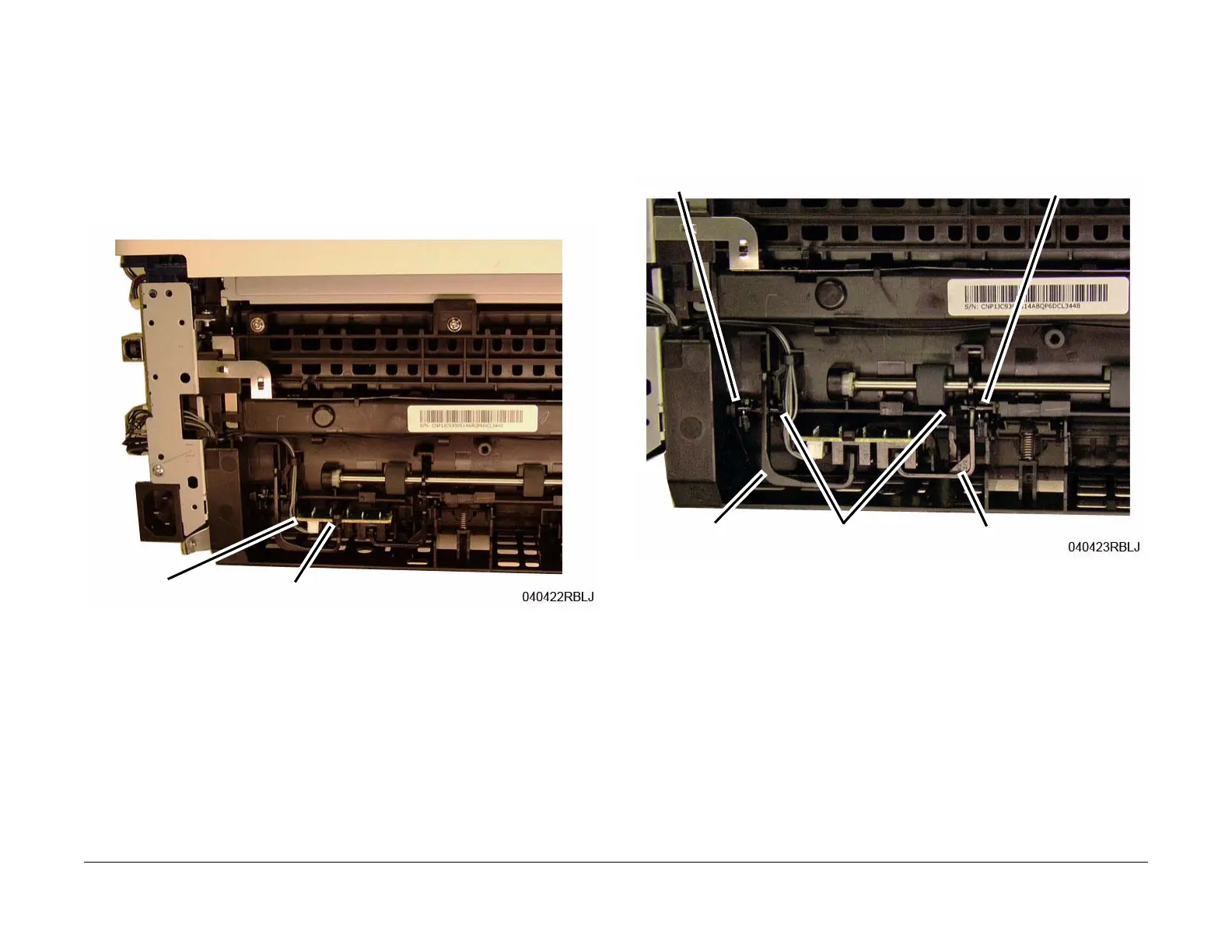

Figure 1 Feed Sensors PWB (Rear View)
4. Removing the Feed Sensor Actuator (Figure 2):
Note the location of the Spring in the frame cutout for reinstallation.
a. Unlatch and remove the actuator.
5. Removing the Width Actuator (Figure 2):
Note the location of the Spring in the frame cutout for reinstallation.
a. Unlatch and remove the actuator.
Figure 2 Sensor Actuators and Springs (Rear View)
Replacement
NOTE: Tapered Plastic Screws and Round Machine Screws are used to hold the PWB to the
frame. Make sure that the Plastic Screws go into plastic components and Machine Screws go
into the metal frame.
NOTE: Make sure that the Actuator Spring is location in frame cutout (Figure 2).
Install the components in the reverse of removal.
PWB
Latch
Spring
Spring
Latch
Width Sensor Actuator
Feed Sensor Actuator
