Xerox Phaser 3020

June 2014
5-3
Xerox® Phaser® 3020 Printer Service Manual
PL 1.1
Parts Lists

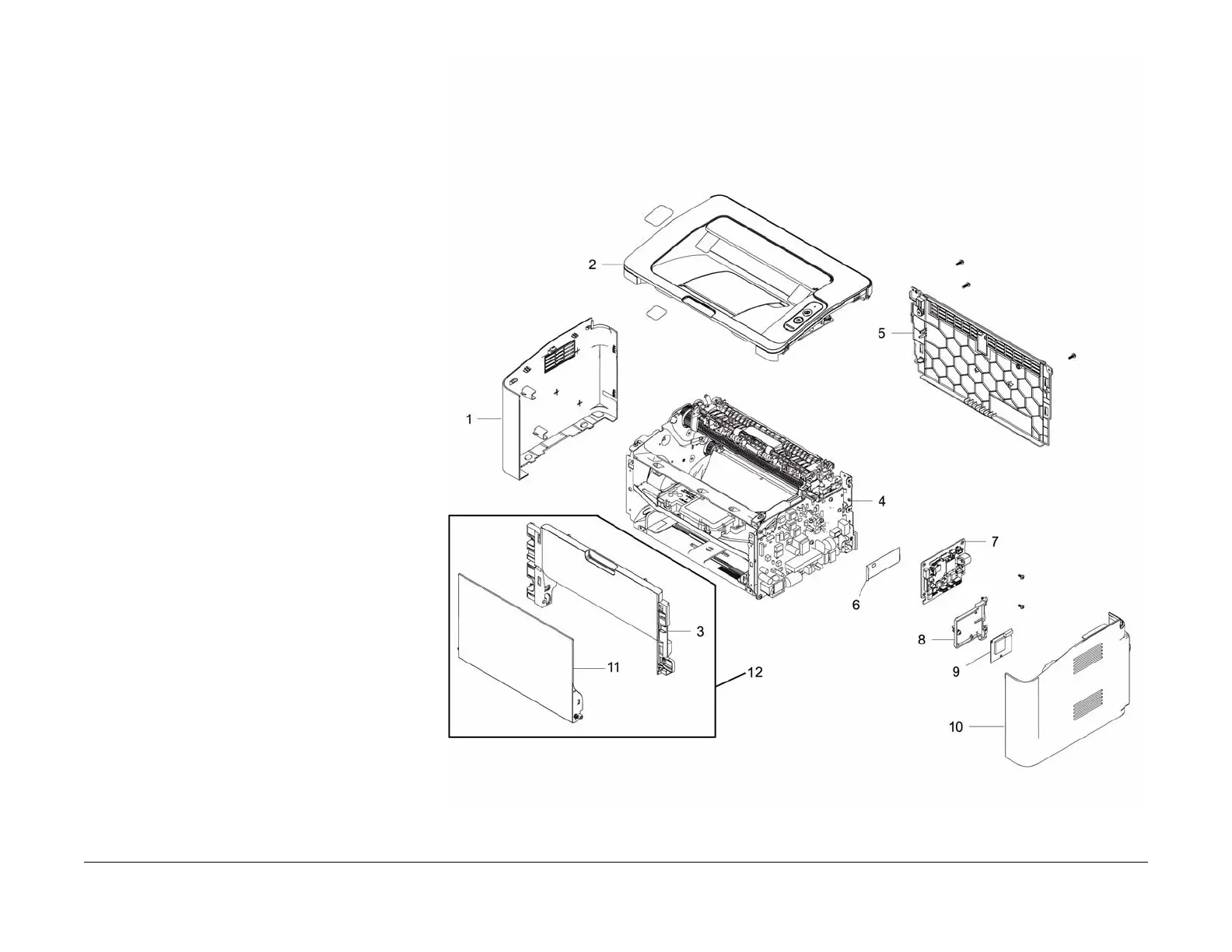

PL 1.1 Main
Item Part Description
1 002N03166 Left Cover (Black)
– 002N03165 Left Cover
2 – Top Cover (PL 2.1)
3 002N03162 Front Cover (Black)
– 002N03161 Front Cover
4 – Frame (PL3.1)
5 002N03170 Rear Cover
– 002N03171 Rear Cover (Black)
6 – Main PWB Insulator
7 140N63720 Main PWB -3020 BI (DMO-E /
Russia/Middle East/South Africa/
Argentina/Peru)
– 140N63721 Main PWB - 3020 BI (Chile)
– 140N63719 Main PWB -3020 BI (NA / DMO-W)
8 – Wireless Cover
9 140N63727 WNPC (WIFI) PWB
10 002N03183 Right Cover
– 002N03184 Right Cover (Black)
11 002N03178 Paper Support
– 002N03179 Paper Support (Black)
12 – Front Cover Assembly (Items 3, 11)
