Xerox® Phaser® 3020 Printer Service Manual
REP 1.11
Repairs
REP 1.11 Feed Rolls and Retard Pad
Parts List on PL 3.7 and PL 3.3
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Remove the Print Cartridge.
3. Remove the following covers:
a. Left and Right Side Covers (REP 1.2).
b. Rear Cover (REP 1.3).
c. Front Cover (REP 1.1).
d. Top Cover (REP 1.4).
4. Perform the following (Figure 1):
a. Disconnect the Drive Motor connector (1).
b. Remove the inside LSU cover screws (2).

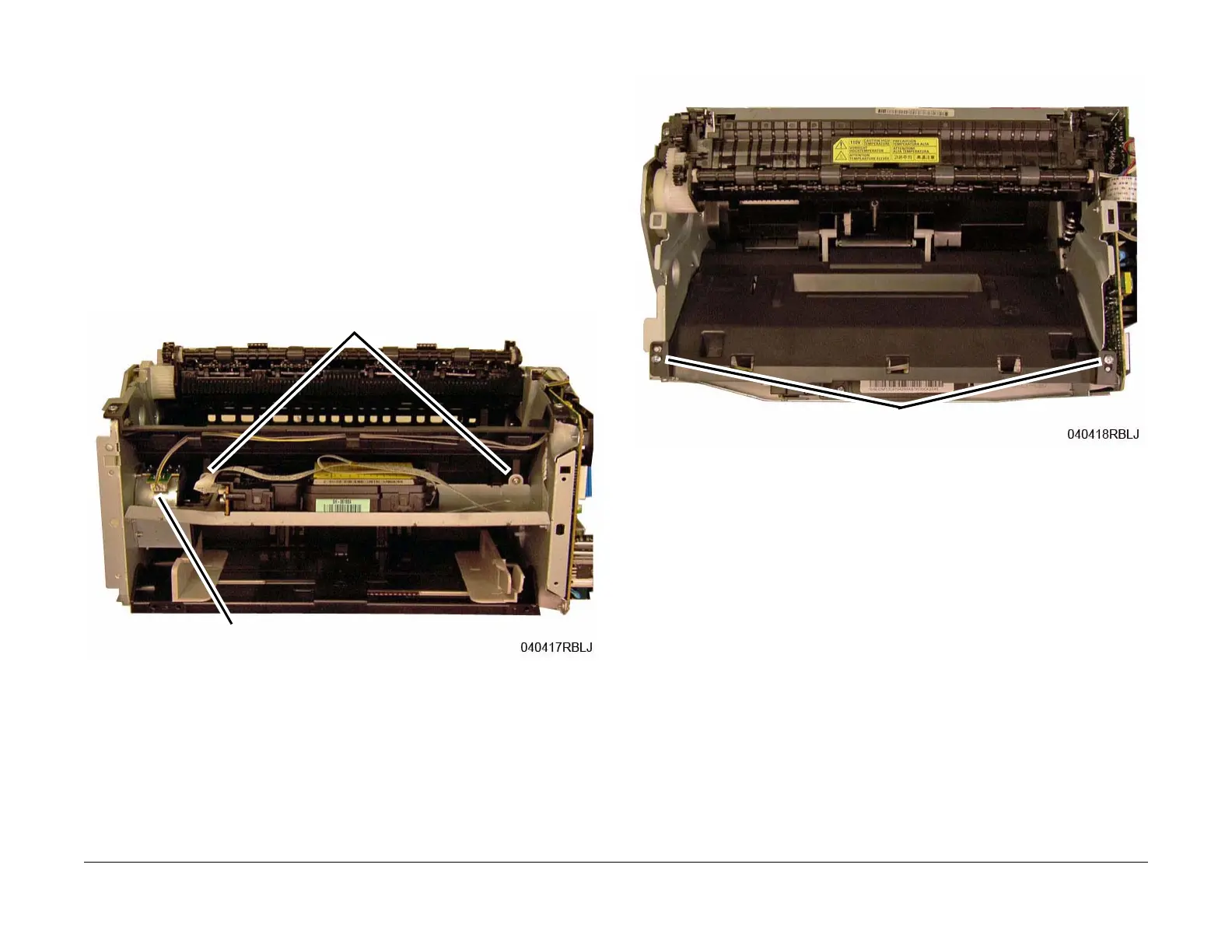

Figure 1 Motor Connector and LSU Cover Screws (Front View)
5. Remove the top LSU Cover screws (2) and the cover (Figure 2).
Figure 2 LSU Cover Top Screws (Top View)
6. Remove the Feed Rolls Assembly screws (2) through the bottom of the Printer (Figure 3).
Screw
Connector
Screw
