Xerox Phaser 3020

June 2014
4-26
Xerox® Phaser® 3020 Printer Service Manual
REP 1.17, REP 1.18
Repairs
6. Remove the Paper Drive Roll (Figure 4):
NOTE: Be careful not to lose the Paper Drive Roll Bushing on the Left Frame.
a. Remove the E-rings (2).
b. Move the roll to the right and remove it.

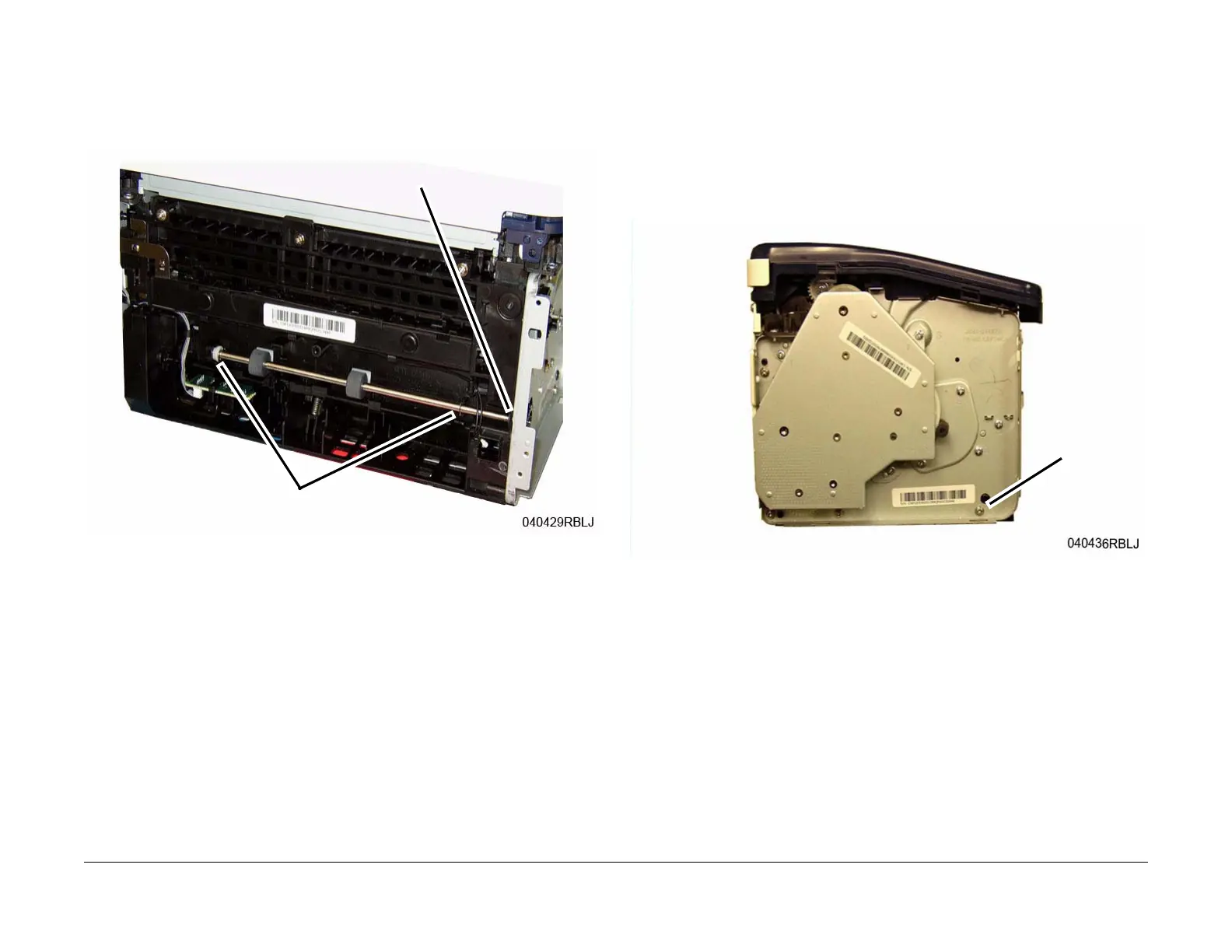

Figure 4 Paper Drive Roll Removal (Rear View)
Replacement
NOTE: Tapered Plastic Screws and Round Machine Screws are used to hold the PWB to the
frame. Make sure that the Plastic Screws go into plastic components and Machine Screws go
into the metal frame.
NOTE: Make sure that the Actuator Spring is location in frame cutout (Figure 3).
NOTE: When replacing the Main Drive Unit, the drive gears may need to be rotated to align
them with the other drives.
Install the components in the reverse of removal.
REP 1.18 Paper Tray
Parts List on PL 3.1
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Remove the following covers:
a. Left and Right Side Covers (REP 1.2).
b. Front Cover (REP 1.1).
3. Remove the Paper Tray Screw (1) from the Left Frame (Figure 1).
Figure 1 Paper Tray Screw (Left View)
Bushing
E-rings
Screw
