Xerox® Phaser® 3020 Printer Service Manual
REP 1.14
Repairs
4. Disconnect the Fuser Connectors (Figure 1).

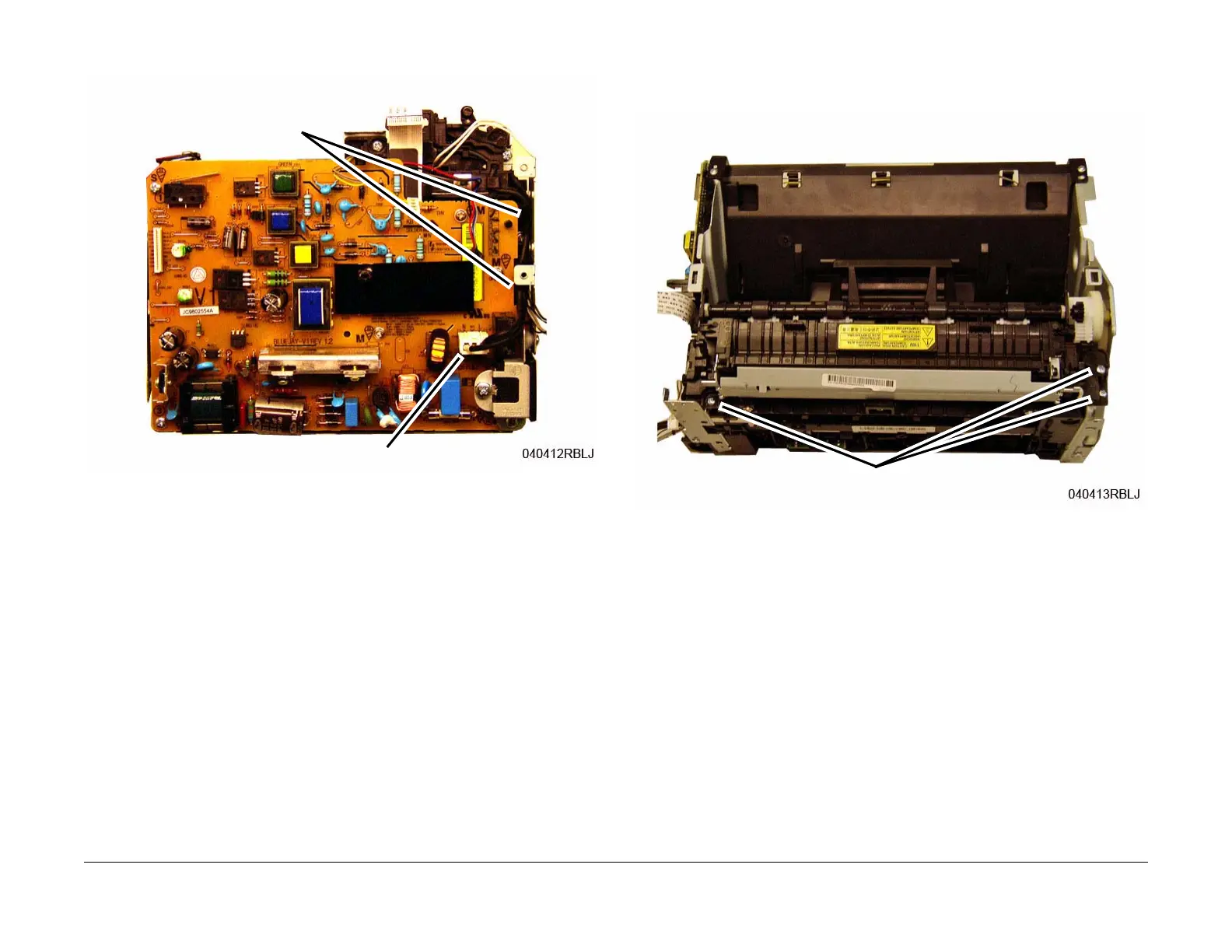

Figure 1 Fuser Connector and Wire Guides
NOTE: The top right (viewed from the rear) Tapered Plastic Screw is different than the other
plastic screws in the printer, make sure it is installed in the correct location during replacement.
5. Remove the screws (3) (Figure 2).
Figure 2 Fuser Screws (Top View)
Connector
Wire Guides
Screws
