Xerox Phaser 3117 Service Manual

x
Service Manual
Disassembly and Reassembly
5-2
5.2 Disassembly and Reassembly

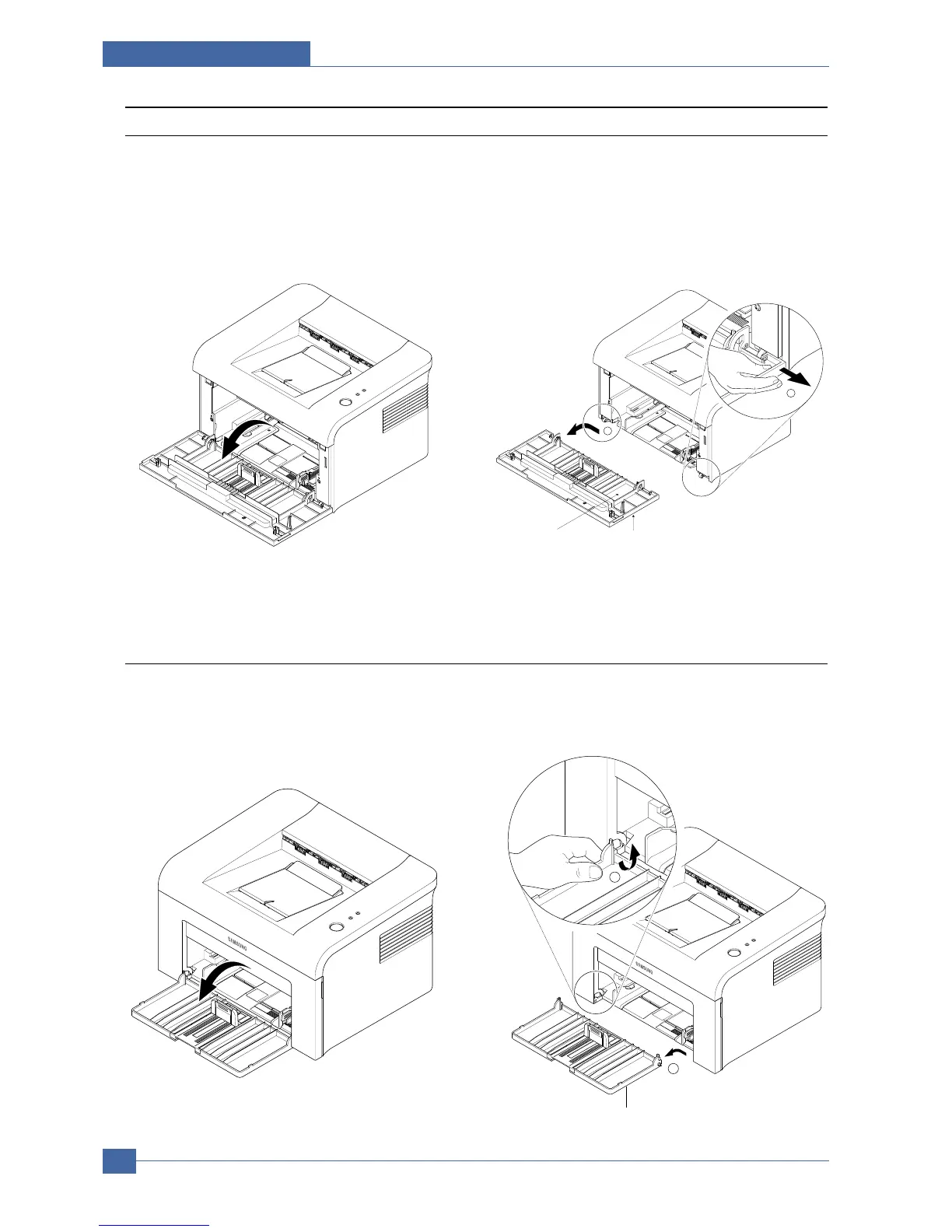

5.2.1 Front Cover
1.Open the front cover.(The front cover and the cas-
sette tray are assembled with the same assembly.)
2.Separate the cover from the lock of the frame by
pulling the right bottom of the cover toward the arrow
direction. Pull out the front cover to the left as shown
as below.
1.For separating only cassette tray,open the tray. 2.Hold the set and lift up the hook on the left bottom
toward the arrow direction.Separate the cassette tray
by pulling it out to the left as shown as below.
Front CoverCassette Tray
2
1
Cassette Tray
2
1
5.2.2 Cassette Tray
