Xerox Phaser 3117 Service Manual

Disassembly and Reassembly
x
Service Manual
5-13

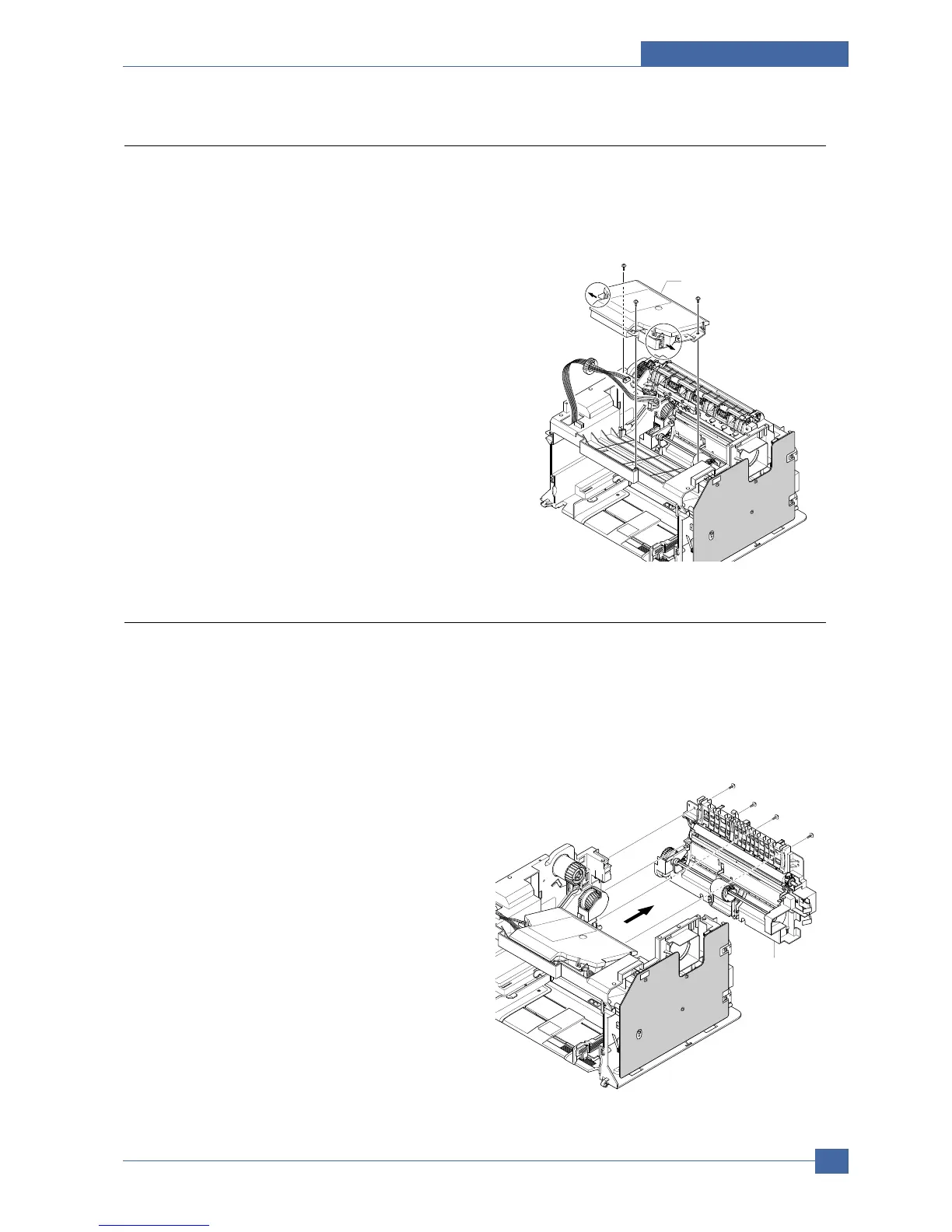

5.2.10 LSU
5.2.11 Paper Path Frame
1.Before Disassembling
-Separate the font cover.(Refer to 5.2)
-Separate the SMPS cover.(Refer to 5.3)
-Separate the Main cover.(Refer to 5.4)
2.Release 3 screws as shown as below, lift up the LSU,
and then disconnect 2 connectors from the separat-
ed LSU.
(Screw x 2:Silver_M3,6003-000196)
1.Before Disassembling
-Separate the font cover.(Refer to 5.2)
-Separate the SMPS cover.(Refer to 5.3)
-Separate the Main cover.(Refer to 5.4)
-Separate the Fuser.(Refer to 5.8)
-Separate the Engine shield.(Refer to 5.9)
2.After releasing 4 screws as shown as below, take it
out toward the arrow direction with carefulness of
ground and harnesses.
(Screw x 4:Silver_M3,6003-000196)
LSU
Paper Path Frame
