Engine Shield
(W/Main PBA, SMPS)
Actuator Feed Sensor Lever
SMPS
Main PBA

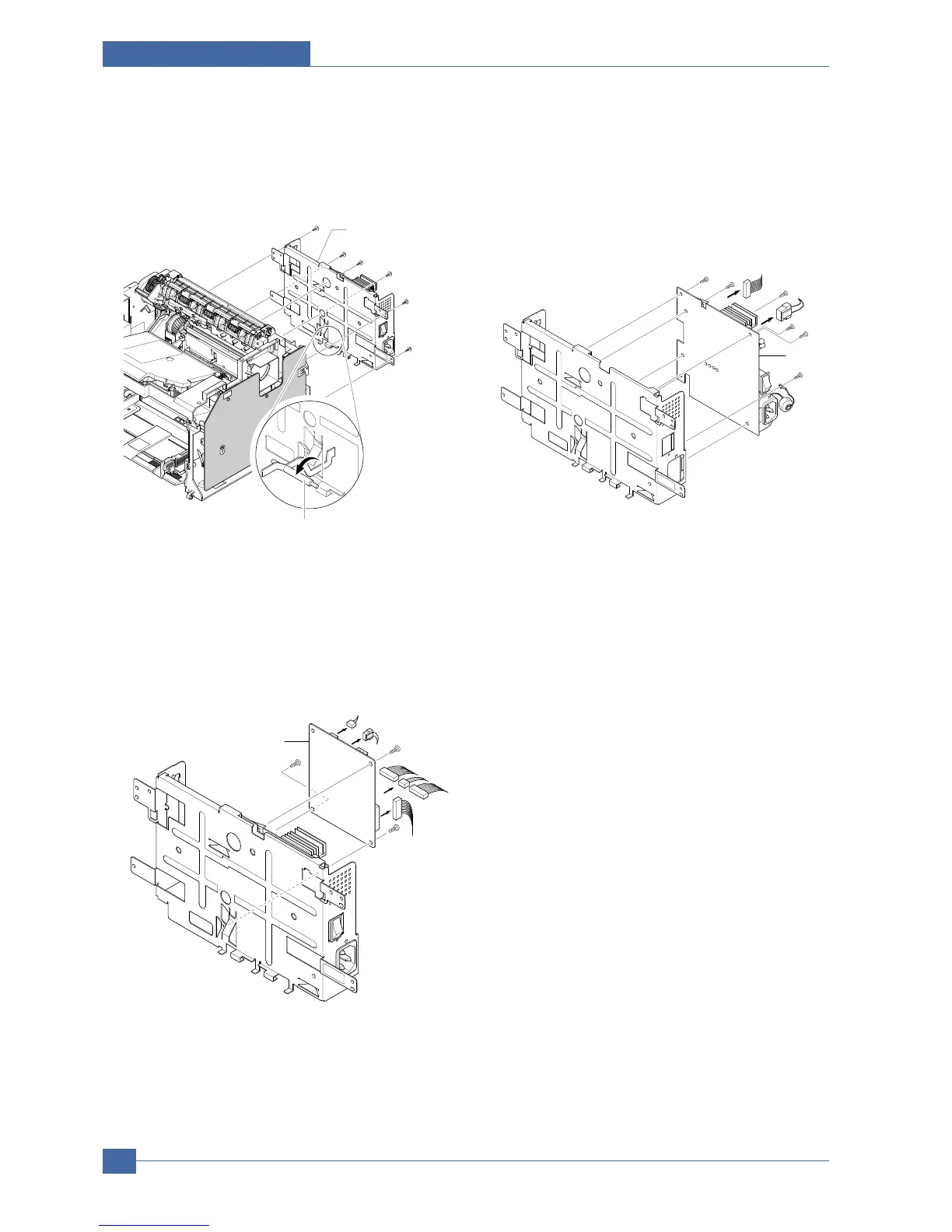

3.Release 6 screws as shown as below, separate the
harnesses from the shield,and then separate the
engine shield with carefulness of the actuator feed
sensor lever.
(Screw x 6:Silver_M3,6003-000196)
4.For removing only SMPS, perform the follows in
order : separate the SMPS cover (Refer to the 5.3),
release 5 screws, separate the fuser connector and
the main PBA connector, and then take out the
SMPS.
(Screw x 5 : Gold_M3, 6003-000269)
5. For removing only Main PBA, perform the follows
in order : separate the SMPS cover (Refer to the
5.3), release 3 screws, separate the main PBA
connector, and then take out the main PBA.
(Screw x 3 : Gold_M3, 6003-000269)
