Xerox Phaser 3117 Service Manual

Disassembly and Reassembly
x
Service Manual
5-11

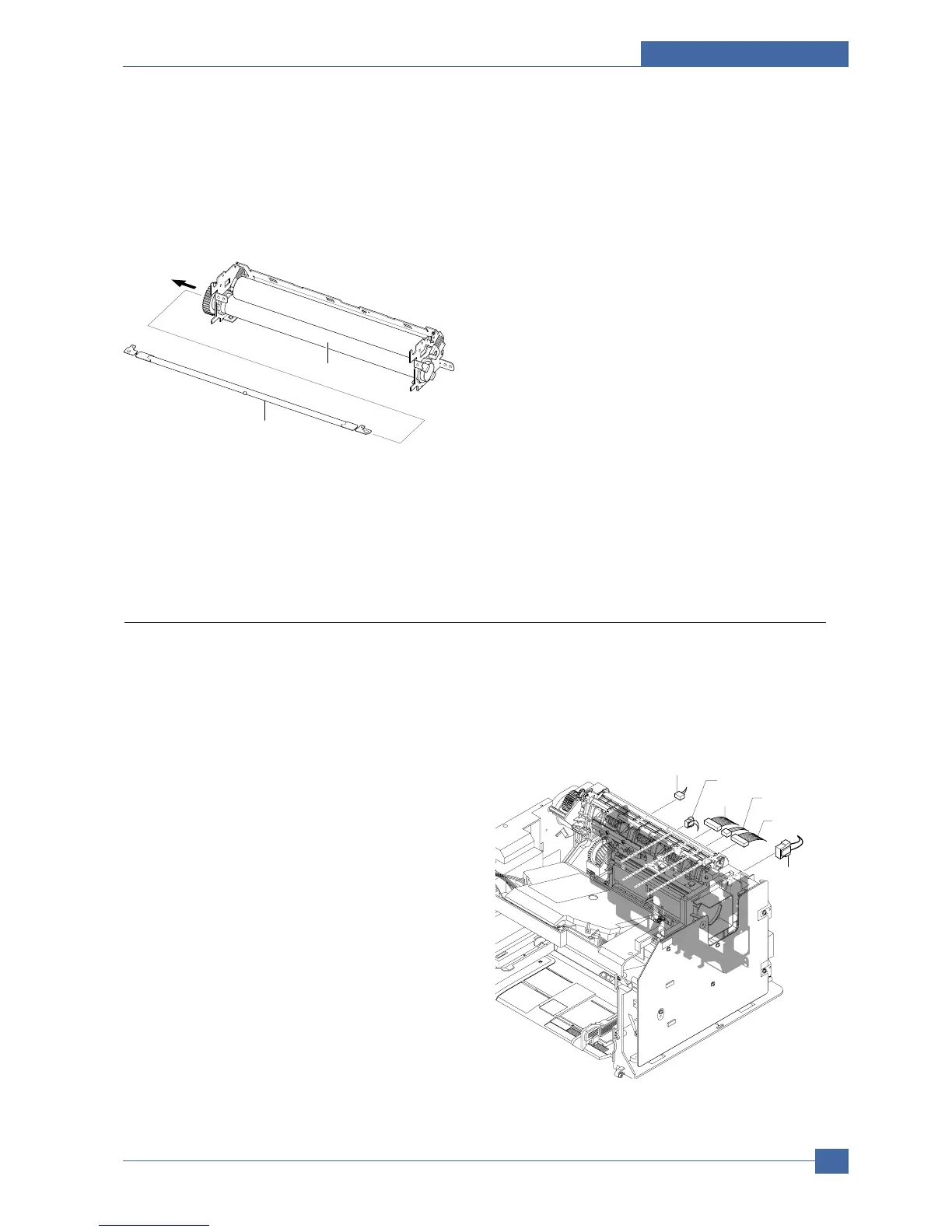

5.2.9 Engine Shield (Including Main PBA and SMPS)
Halogen Lamp
Heat Roller
Thermister
Clutch
Fuser
LSU
Motor
HVPS
11.Remove the halogen lamp from the heat roller by
pulling it out to the arrow direction.
1.Before Disassembling
-Separate the font cover.(Refer to 5.2)
-Separate the SMPS cover.(Refer to 5.3)
-Separate the Main cover.(Refer to 5.4)
2.Disconnect all connectors except the connector
which connects the SMPS to the Main PBA.
