Disassembly and Reassembly
x
Service Manual
5-3
5.2.3 SMPS Cover
5.2.4 Main Cover

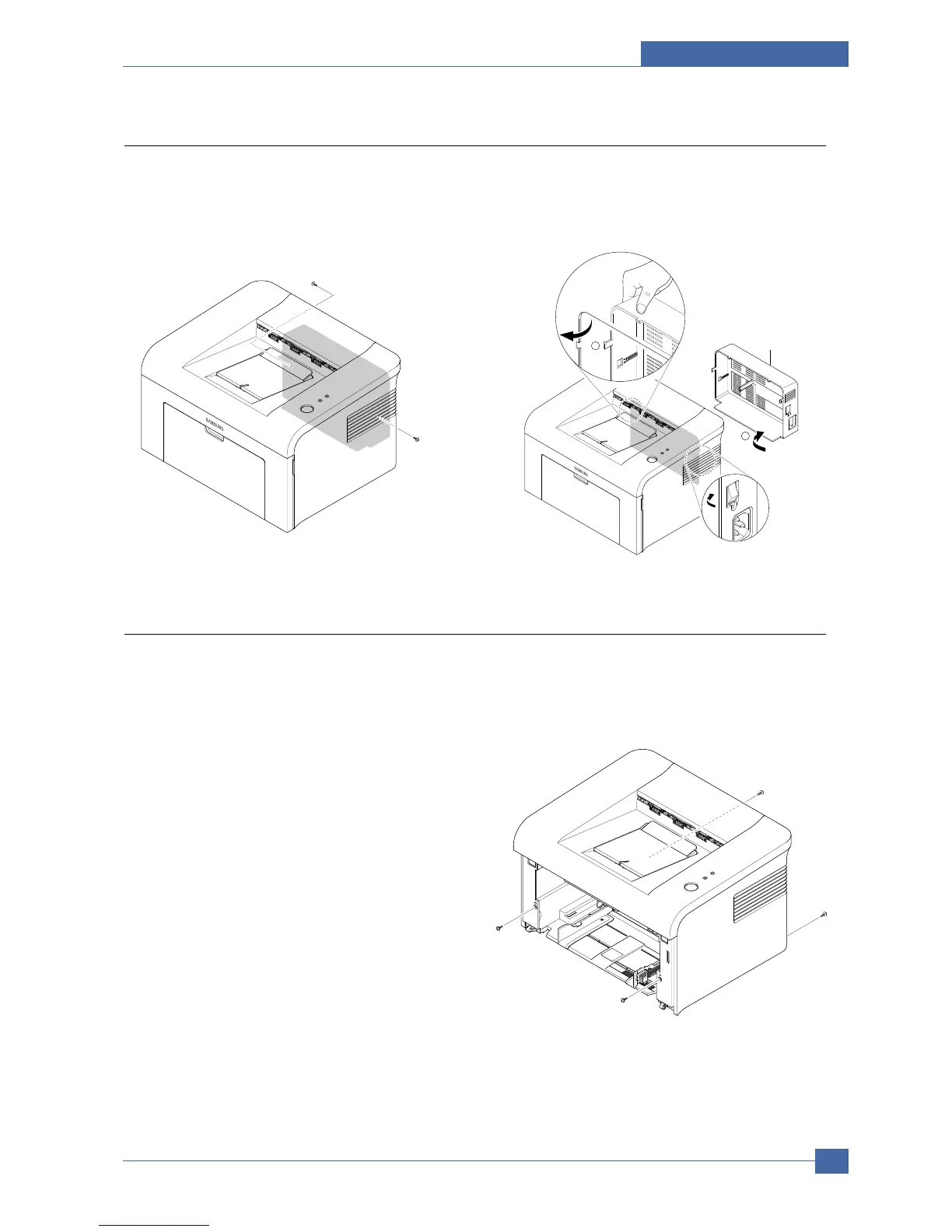

1.Release two screws.
(Screw x2:Silver_M3,6003-000196)
2.Separate the lock by holding the left side of the cover
and pulling it toward the arrow direction. Remove it
with carefulness that the power switch is not hooked
on SMPS cover as shown as below.
1.Before Disassembling.
-Separate the font cover.(Refer to 5.2)
-Separate the SMPS cover.(Refer to 5.3)
2.Release 4 screws as shown as below.
(Screw x 4 : Silver_M3,6003-000196)
To Next Page
