Xerox Phaser 3117 Service Manual

x
Service Manual
Disassembly and Reassembly
5-4

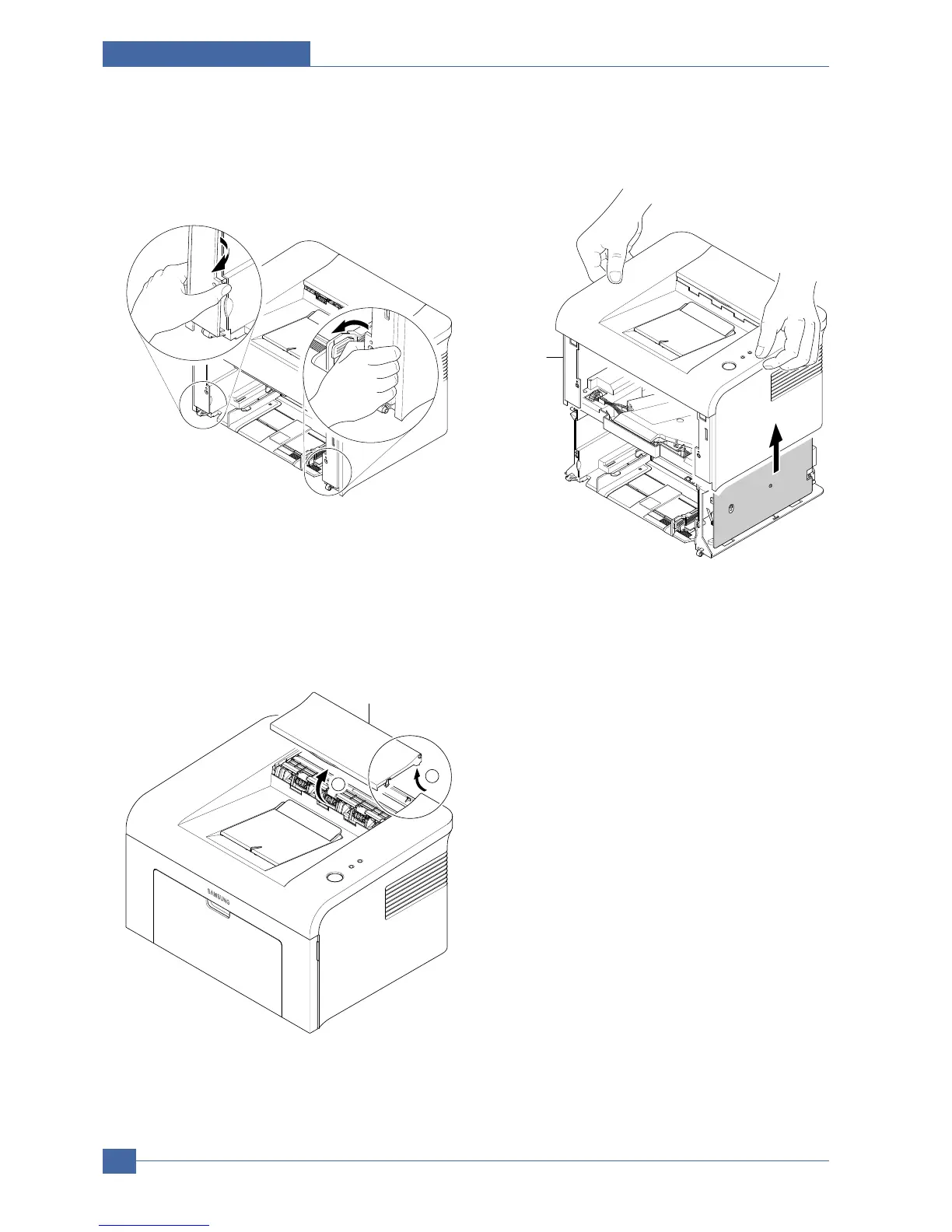

3.Hold the both ends of the cover and pull it up bit by
bit toward the arrow direction as shown as below.
4.Separate it by holding the both sides of the main
cover and carefully lifting it up.
5.If necessary,remove the jam cover.Open the cover,
take out the hook on the right toward the arrow direc-
tion, and then take out the jam cover to the right side.
Jam Cover
2
1
Main Cover
