b. If the paper type, size, or color are incorrect, change the settings.
• To select a paper type, touch the current paper type, then from the list, select EEnnvveellooppee.
• To select a size, touch the current size setting, then from the list, select the size.
• To select an envelope color, touch the current paper color, then from the list, select the color.
c. To save the settings, touch OOKK.
Loading Envelopes in Tray 1

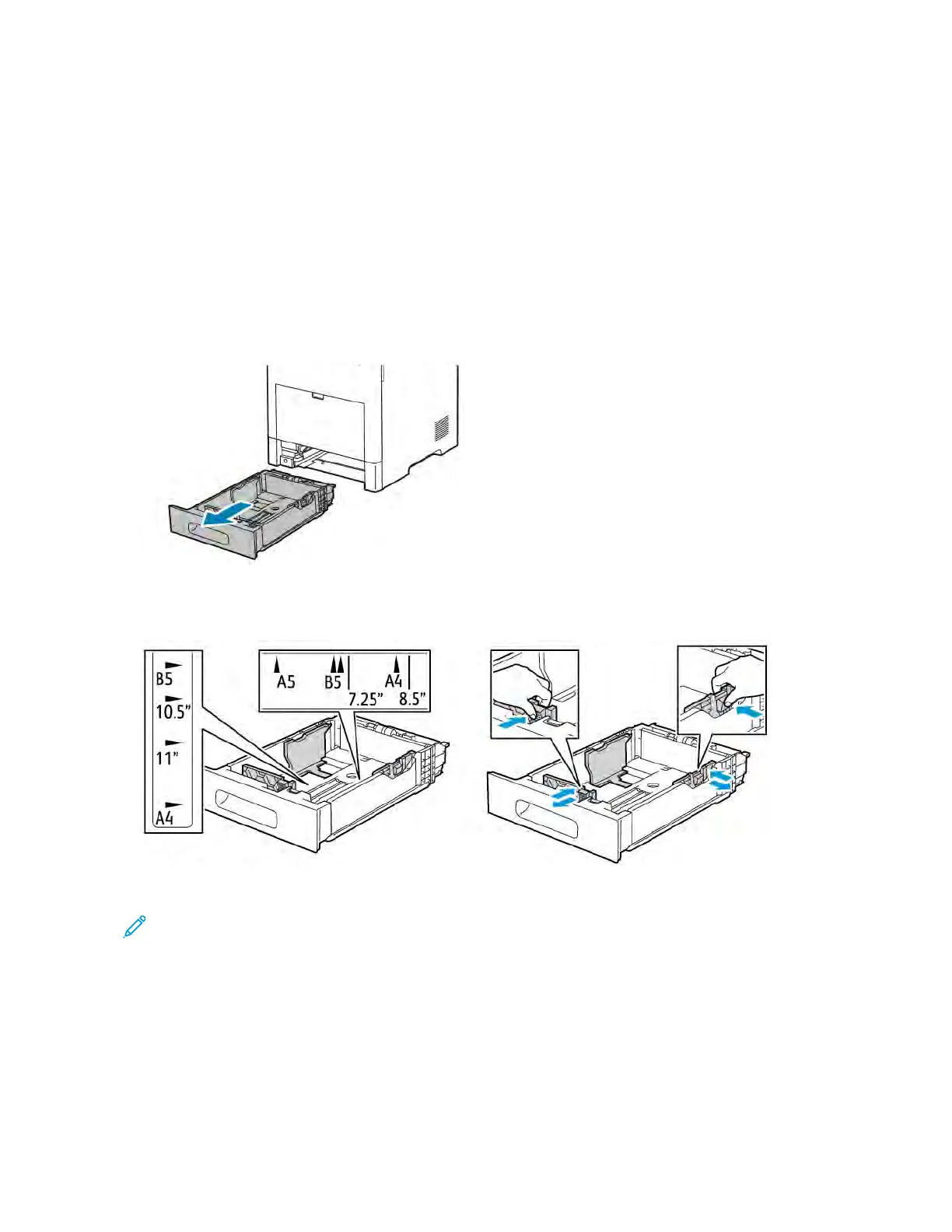

1. To remove the tray from the printer, pull out the tray until it stops. Lift the front of the tray slightly, then pull it
out.
2. Remove any paper in the tray.
3. Adjust the paper length and width guides as illustrated.
4. Load envelopes in the trays with the flaps closed, flap-side down, and the short edge leading into the printer.
Note: Do not load more than 50 envelopes into the tray, up to 45 mm (1.8 in.) in height.
5. Adjust the width guides until they touch the edges of the envelopes.
Xerox
®
VersaLink
®
B600/B610 Printer User Guide 125
Paper and Media
