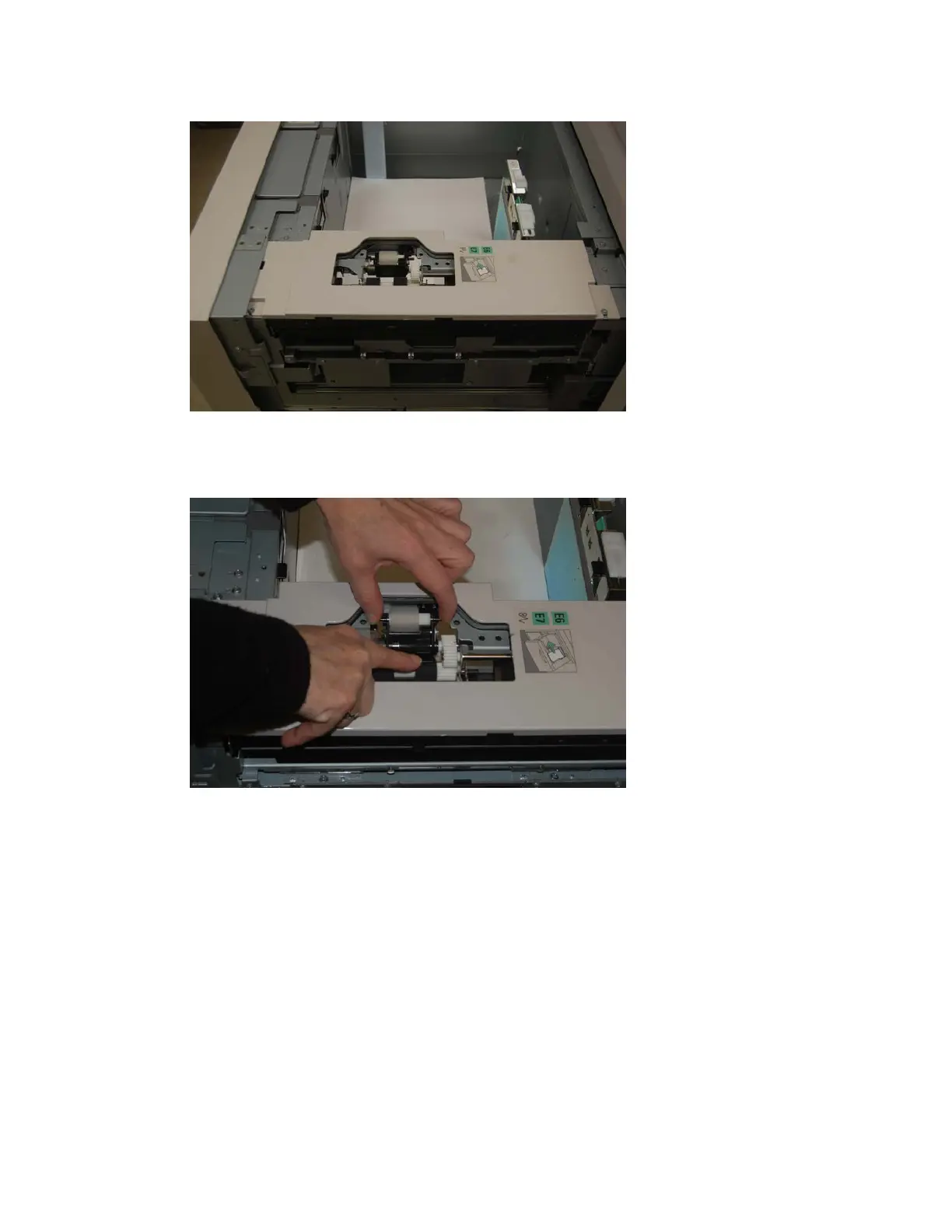

2. Notice the feed roll compartment on the right side panel of the drawer.
3. Remove the nudger roll by pushing down on the black tab with one hand (which raises
the roll upward) and then squeezing the metal shaft on both ends with your other
hand. Lift out the nudger roll.
4. Replace the new roll by squeezing both ends of the metal shaft, and pushing down
on the black tab, insert and release the roll ends into the notches.
