Xerox WorkCentre 5016 User Manual

Installing the Scanner Application (Button Manager)
Xerox WorkCentre 5016/5020 User Guide 39

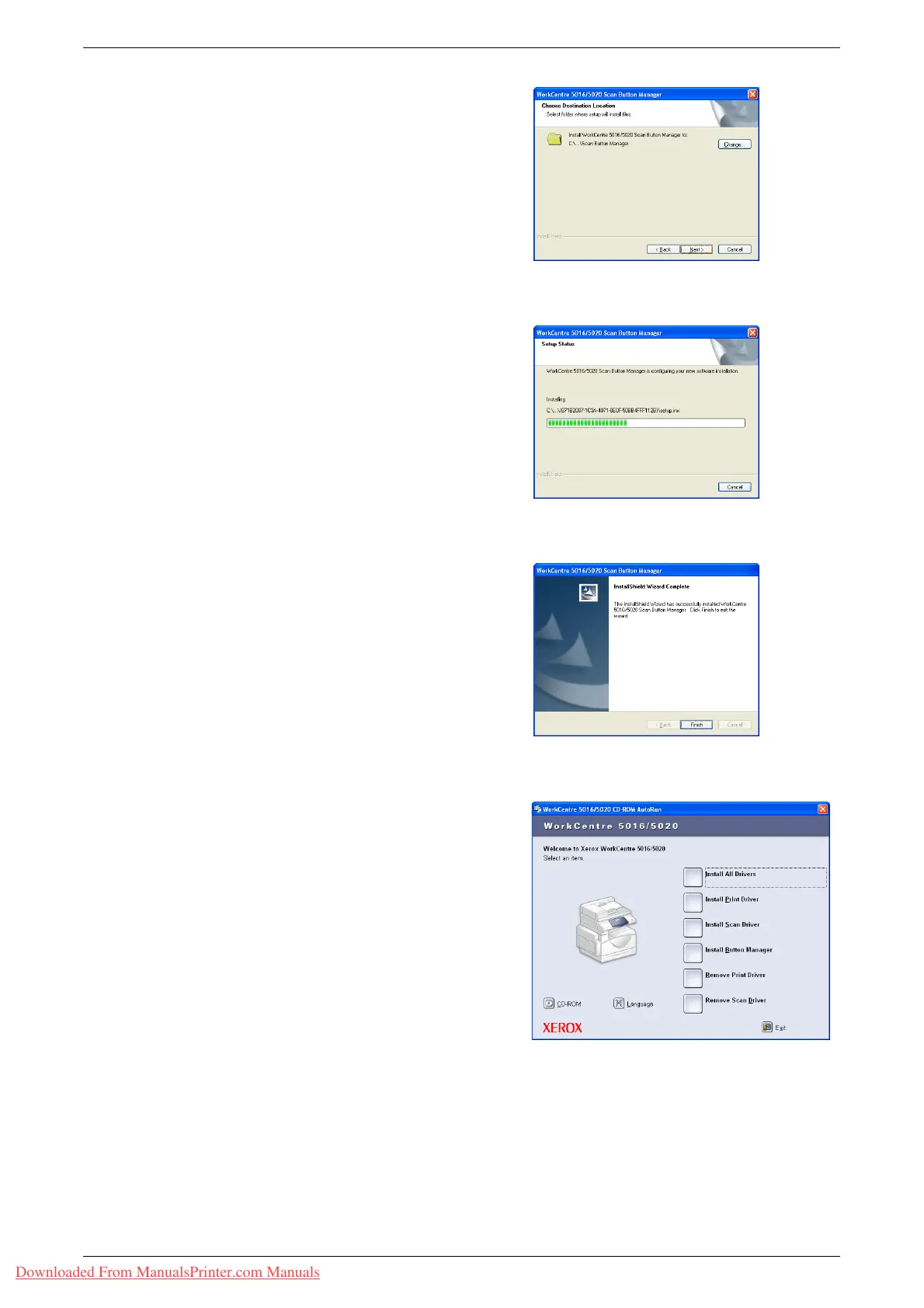

5. Specify the path to a folder to install
files. If you want to install files in the
default location, click [Next]. To install
files in another location, click [Change]
to select another location.
The installation process begins.
6. The installation is now complete.
Click [Finish].
The installation wizard dialog box
closes.
7. Click [Exit] on the [WorkCentre 5016/
5020 CD-ROM AutoRun] dialog box.
The [WorkCentre 5016/5020 CD-ROM
AutoRun] dialog box closes.
Note • To remove Button Manager, select
[Start] > [Control Panel] > [Add or
Remove Programs], then select
Button Manager, and click
[Remove]. (Because this procedure
to remove Button Manager uses
Windows XP as an example, the
procedure may not apply,
depending on the operating system
in use. Refer to a guide provided
with the operating system for more information.)
Downloaded From ManualsPrinter.com Manuals

Xerox WorkCentre 5016 Specifications

General

Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Manual
Functions	Copy, Print, Scan
Print Technology	Laser
Print Speed	16 ppm
Copy Speed	16 cpm
Scan Type	Flatbed
Scan Resolution	600 x 600 dpi
Paper Capacity	250 sheets
Connectivity	USB 2.0
Monthly Duty Cycle	10, 000 pages
Operating System Compatibility	Windows, Mac, Linux
