Maintenance
184 WorkCentre 7800 Series Multifunction Printer
User Guide

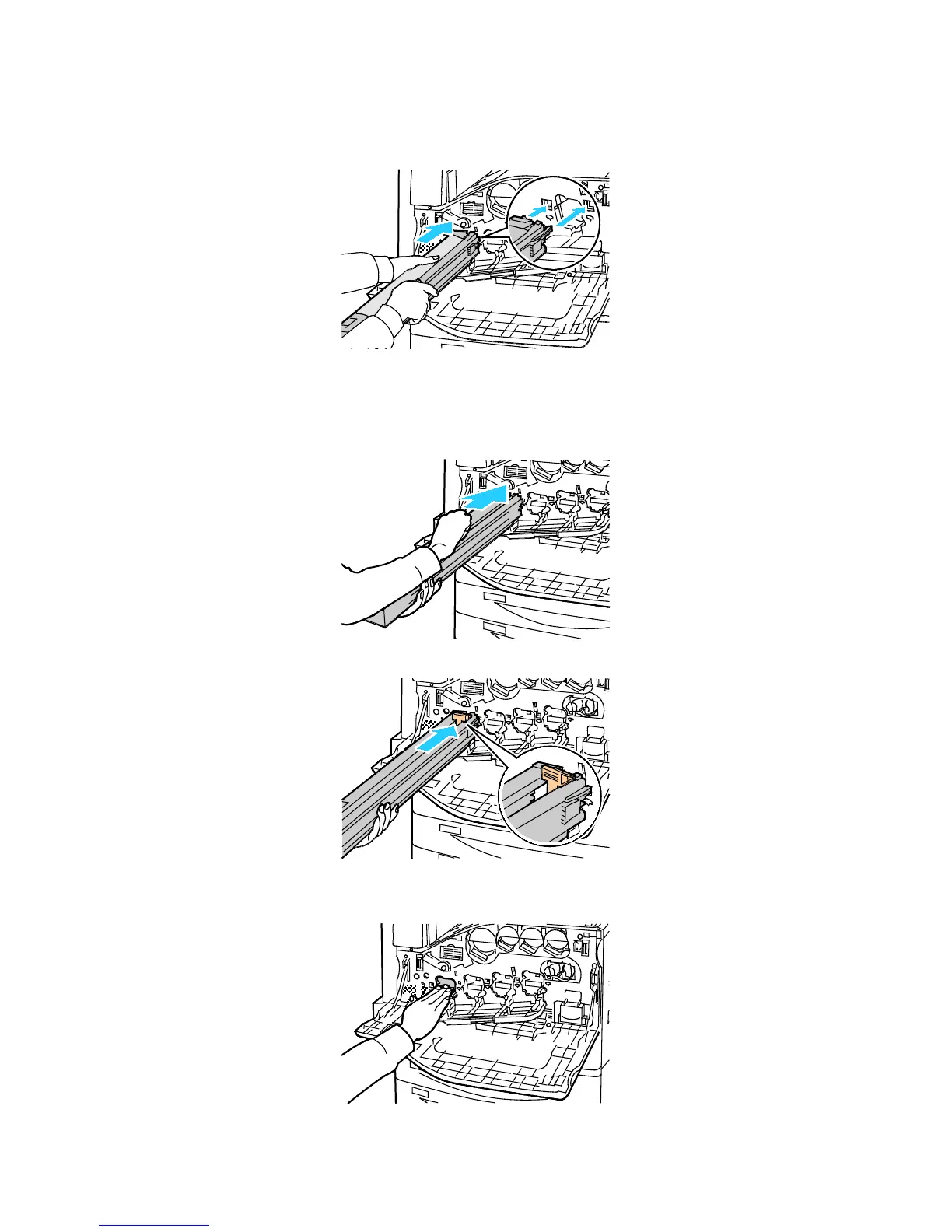

3. Remove the packing material from the end of the new drum cartridge.
4. Rest the new cartridge, along with its black plastic protective shield, in the cartridge slot. Make sure
to load the cartridge in the direction of the arrow on the top of the shield.
5. While keeping the guides inserted in the slot, remove the black paper sheet by pulling it in the
direction shown.
6. Remove the tape from the top of the cartridge shield.
7. Hold the shield and push the cartridge into the printer using the orange handle.
8. Continue pushing the orange handle until it stops.
9. Carefully remove the protective shield.
10. Push the drum cartridge until it stops.
