Clearing Jams at Door D

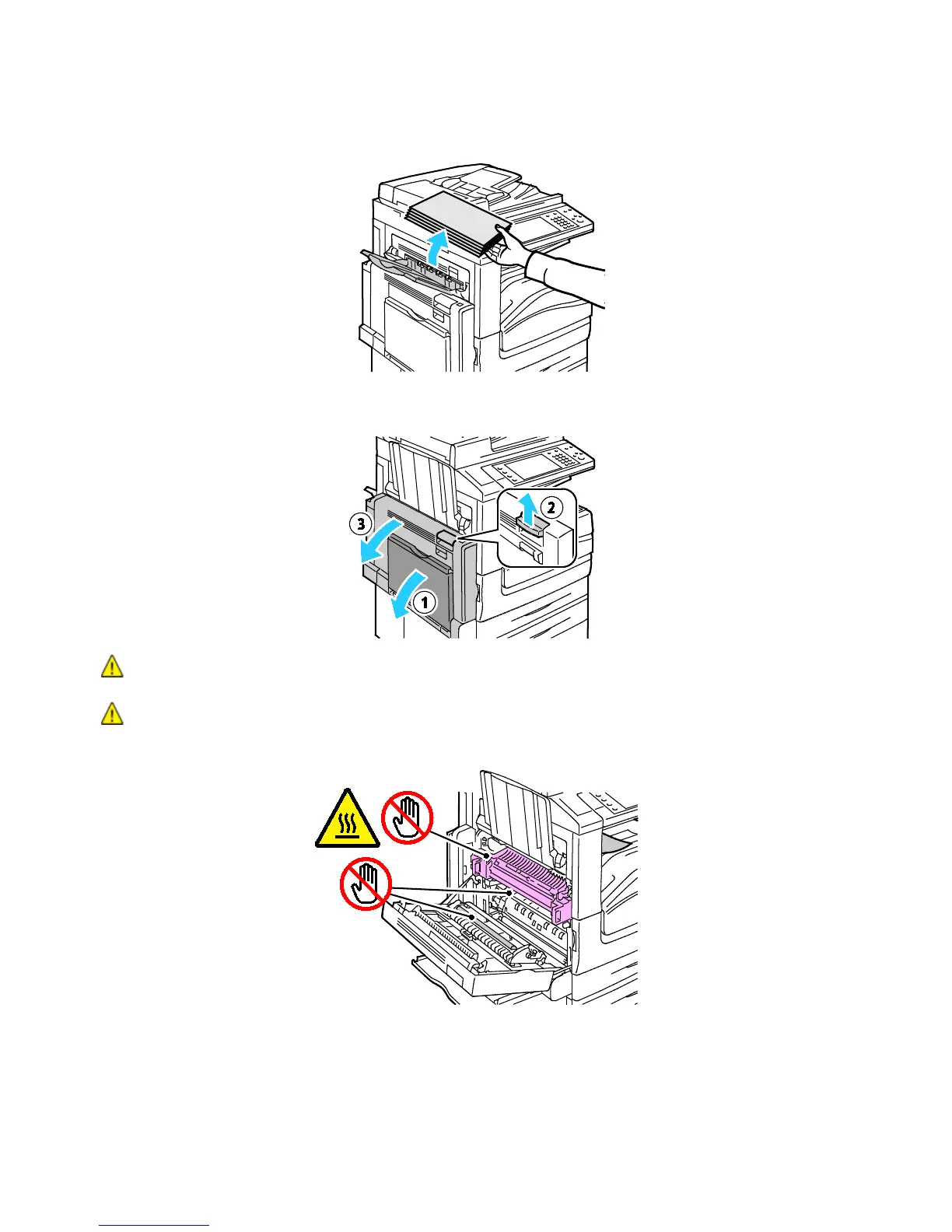

1. Remove paper from the left tray, then fold up the tray.
2. Open tray 5 as shown (1).
3. While lifting the release lever (2), open the top left cover A as shown (3).
WARNING: The area around the fuser can be hot. Use caution to avoid injury.
CAUTION: Do not touch the transfer belt. Touching the belt can reduce image quality or damage the
transfer belt. Do not touch the transfer roller. Touching the roller can reduce image quality.
To Next Page
