Advanced Bring-up Using the Base Targeted Reference Design
To run the script, double-click k7_trd_lin_quickstart in the
k7_pcie_dma_ddr3_base folder (Figure 17). The window prompt in Figure 18
appears.
Click Run in Terminal to proceed. The application GUI is invoked.
Proceed to the next section, Using the Application GUI, to set design parameters and
run the TRD.
X-Ref Target - Figure 17

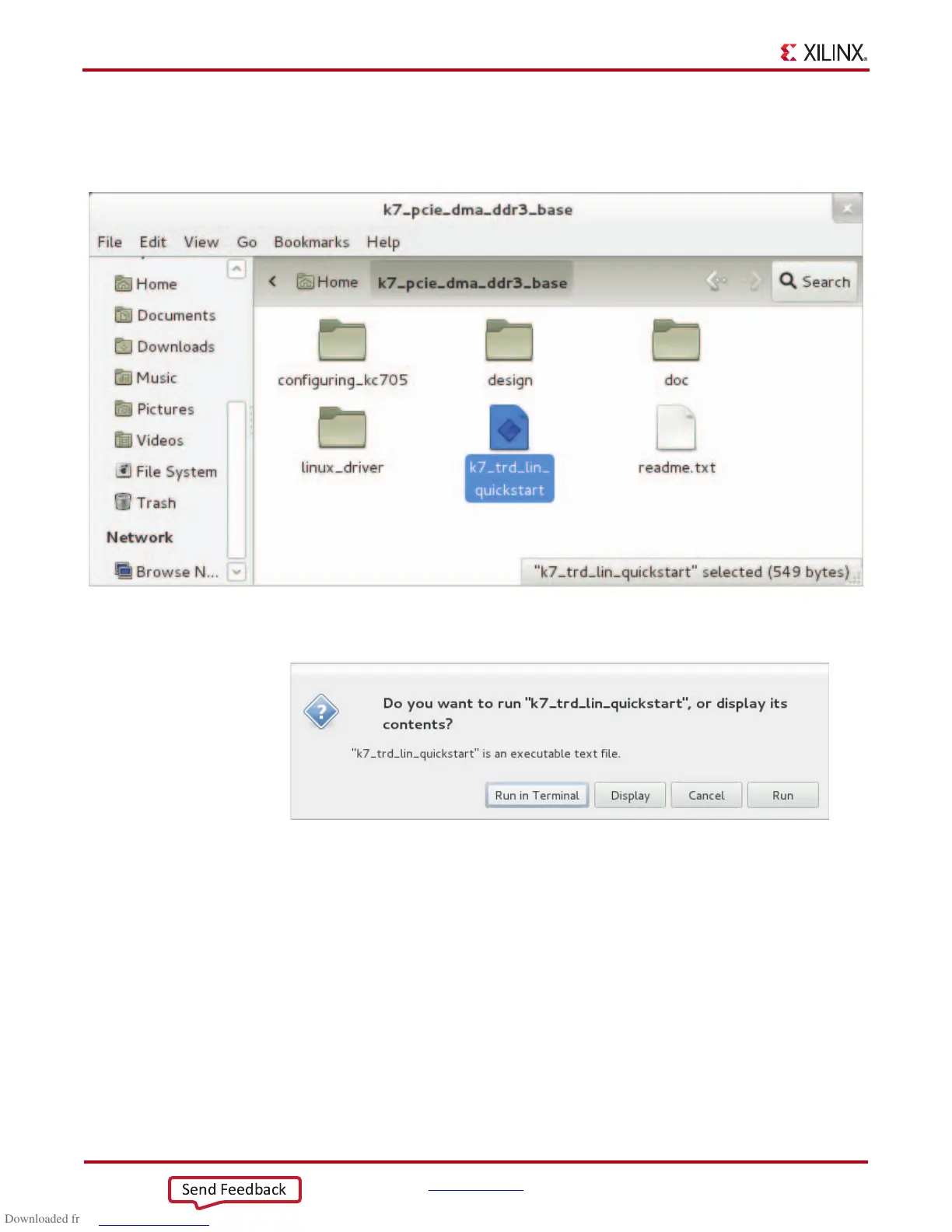

Figure 17: Load Driver and Launch Application GUI
UG883_17_121112
X-Ref Target - Figure 18
Figure 18: Run in Terminal
UG883_18_040913
