Xilinx LogiCORE IP Spartan-6 User Manual

Spartan-6 FPGA GTP Transceiver Wizard v1.8 www.xilinx.com 17
UG546 (v1.8) December 14, 2010
Setting Up the Project
Setting the Project Options
Set the project options using the following steps:
1. Click Part in the option tree.
2. Select Spartan6 from the Family list.
3. Select a Spartan-6 FPGA from the Device list which supports GTP transceivers.
4. Select an appropriate package from the Package list. This example uses the
XC6SLX45T device (see
Figure 3-3).
Note: If an unsupported silicon family is selected, the Spartan-6 FPGA GTP Transceiver
Wizard remains light grey in the taxonomy tree and cannot be customized. Only Spartan-6 FPGA
devices containing GTPA1_DUAL transceiver primitives are supported by the Wizard. See the
Spartan-6 Family Overview for a list of devices containing GTPA1_DUAL transceiver primitives.
5. Click Generation in the option tree and select either Verilog or VHDL as the output
language.
6. Click OK.

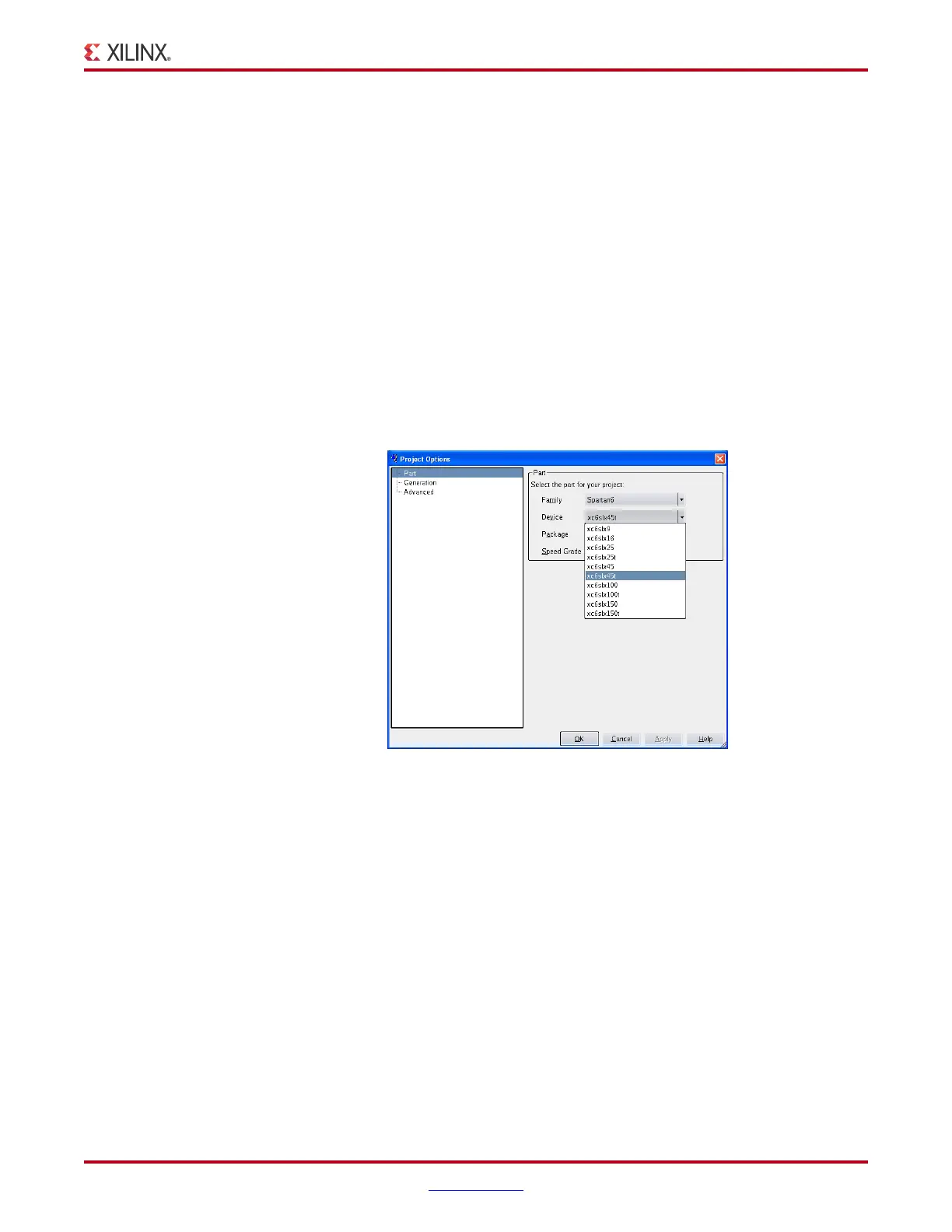

X-Ref Target - Figure 3-3
Figure 3-3: Target Architecture Setting

Xilinx LogiCORE IP Spartan-6 Specifications

General

Device Family	Spartan-6
Maximum Data Rate	3.2 Gbps
Number of Transceivers	Up to 8
Supported Protocols	Gigabit Ethernet
Power Supply	1.0V, 1.2V, 2.5V, 3.3V
Operating Temperature	Commercial, Industrial
Product Name	LogiCORE IP Spartan-6 FPGA Integrated Serial Transceivers
