40 www.xilinx.com Spartan-6 FPGA GTP Transceiver Wizard v1.8
UG546 (v1.8) December 14, 2010
Chapter 3: Running the Wizard
Summary
The Summary screen (page 11) of the Wizard (Figure 3-15) provides a summary of the
selected configuration parameters. After reviewing the settings, click Generate to exit and
generate the wrapper.
X-Ref Target - Figure 3-15

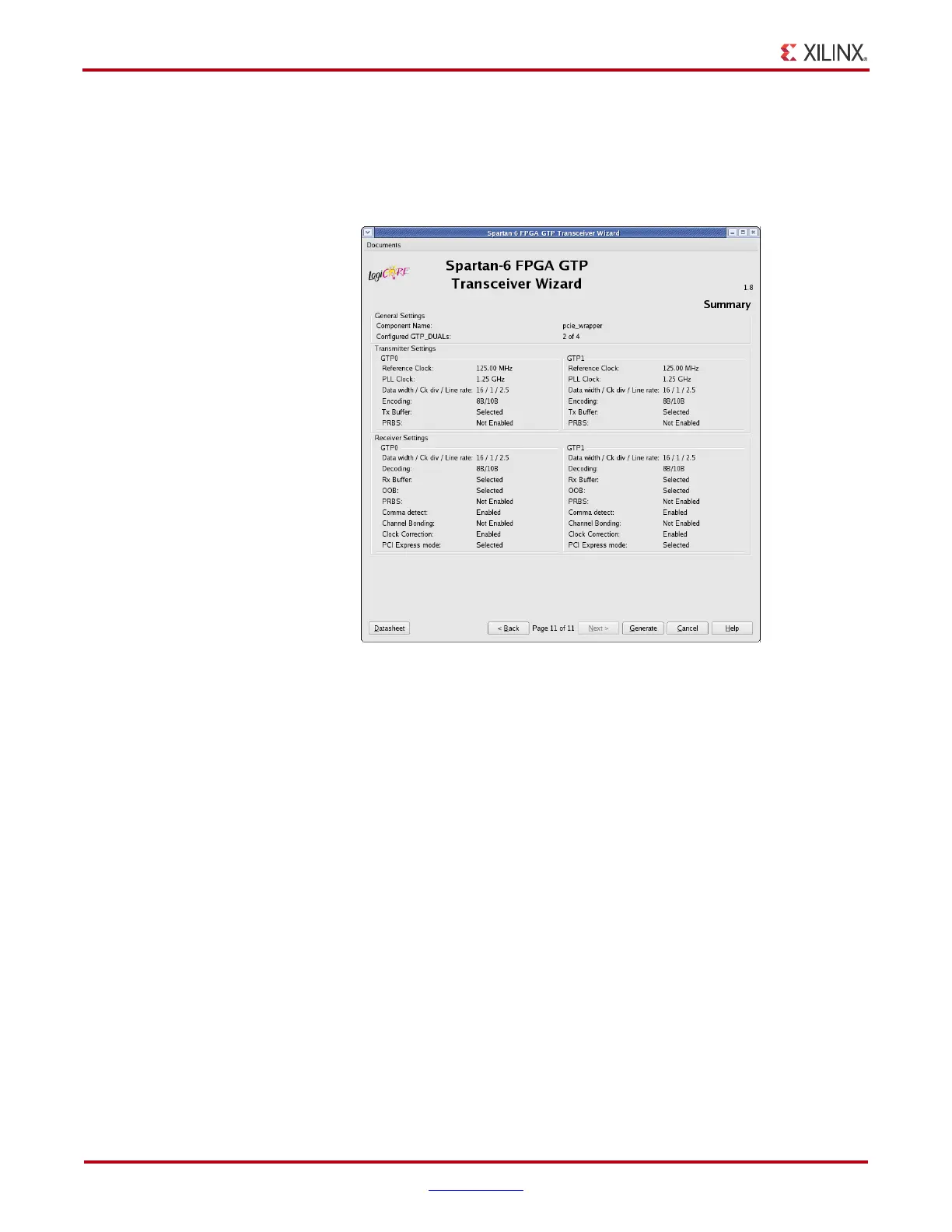

Figure 3-15: Summary - Page 11
