Xilinx Virtex-6 FPGA Getting Started Guide

Virtex-6 FPGA Connectivity Kit Getting Started www.xilinx.com 69
UG664 (v1.4) July 6, 2011
Getting Started with the Virtex-6 FPGA IBERT Reference Design
6. Board Setup V – Connect the power connector:
a. Using the included power supply, connect the power supply connector to the
ML605 board as shown in Figure 70.
b. The power switch SW2 should be switched to the ON position.
X-Ref Target - Figure 70

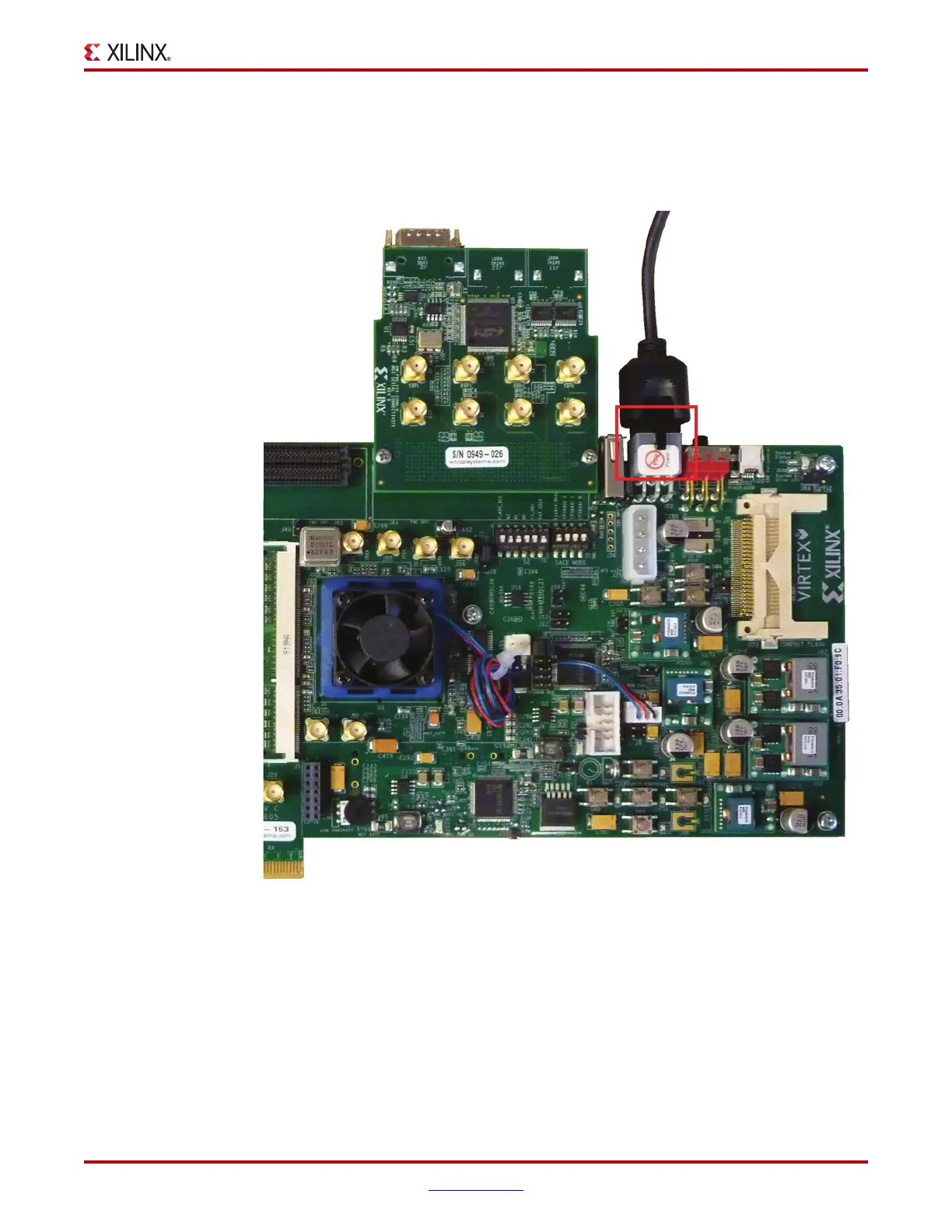

Figure 70: Powering Up the ML605 Board
UG664_47_011710
