Xilinx ZCU104 User Manual

ZCU104 Board User Guide 38
UG1267 (v1.1) October 9, 2018 www.xilinx.com
Chapter 3: Board Component Descriptions

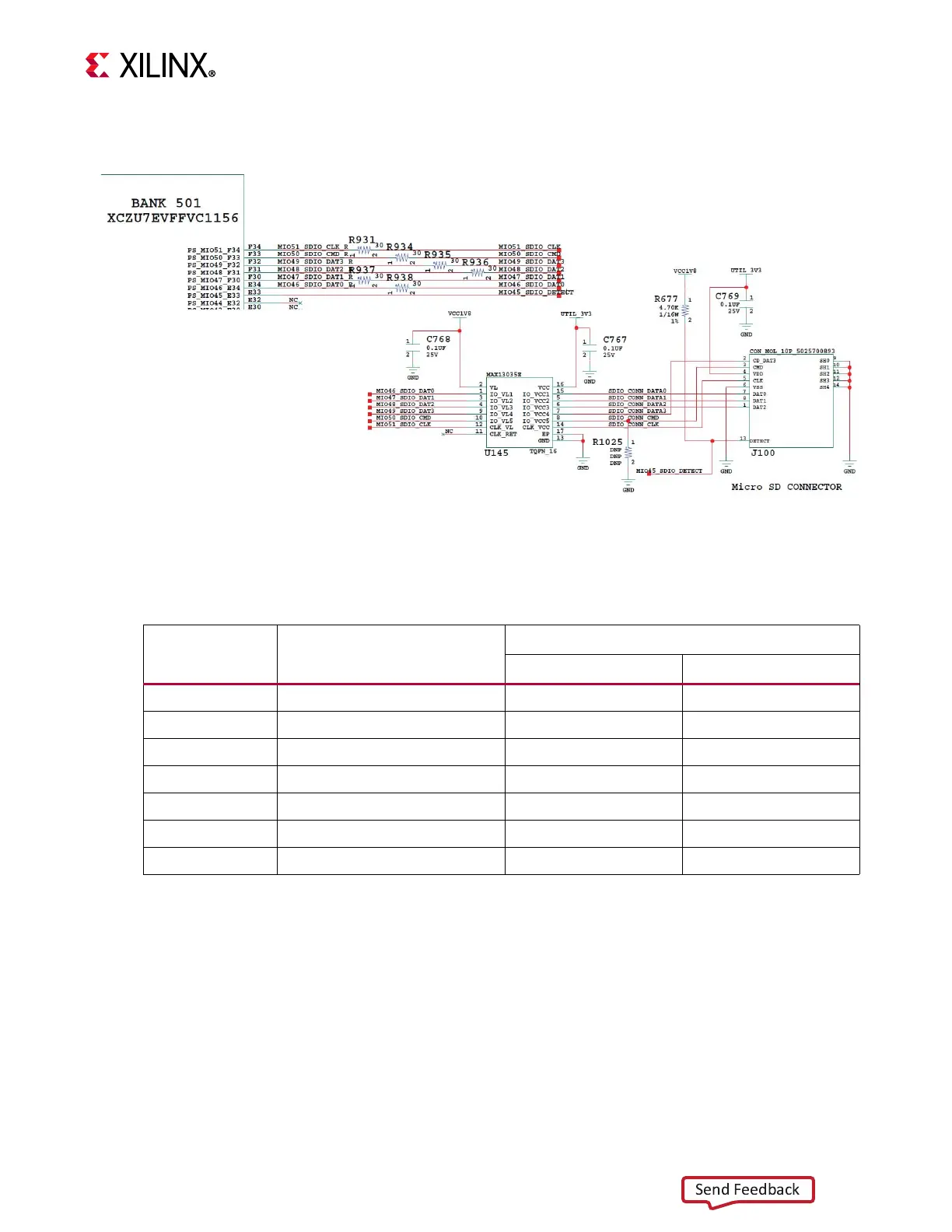

Figure 3-5 shows the connections of the SD card interface on the ZCU104 board.
Table 3-8 lists the SD card interface connections to the XCZU7EV MPSoC.
X-Ref Target - Figure 3-5
Figure 3-5: SD Card Interface
X20252-013018
Table 3-8: XCZU7EV MIO Connections to SD Socket via U145
XCZU7EV (U1)
Pin
Net Name
J100 SD Card Socket
Pin # Pin Name
E34 MIO46_SDIO_DAT0 7 DAT0
F30 MIO47_SDIO_DAT1 8 DAT1
F31 MIO48_SDIO_DAT2 1 DAT2
F32 MIO49_SDIO_DAT3 2 CD_DAT3
F33 MIO50_SDIO_CMD 3 CMD
F34 MIO51_SDIO_CLK 5 CLK
E33 MIO45_SDIO_DETECT 13 DETECT
Send Feedback
