Chapter 3: Board Component Descriptions
Figure 3-22 through Figure 3-24 show the GPIO circuits. Table 3-24 lists the GPIO
connections to XCZU7EV U1 3.3V bank 88.
X-Ref Target - Figure 3-22

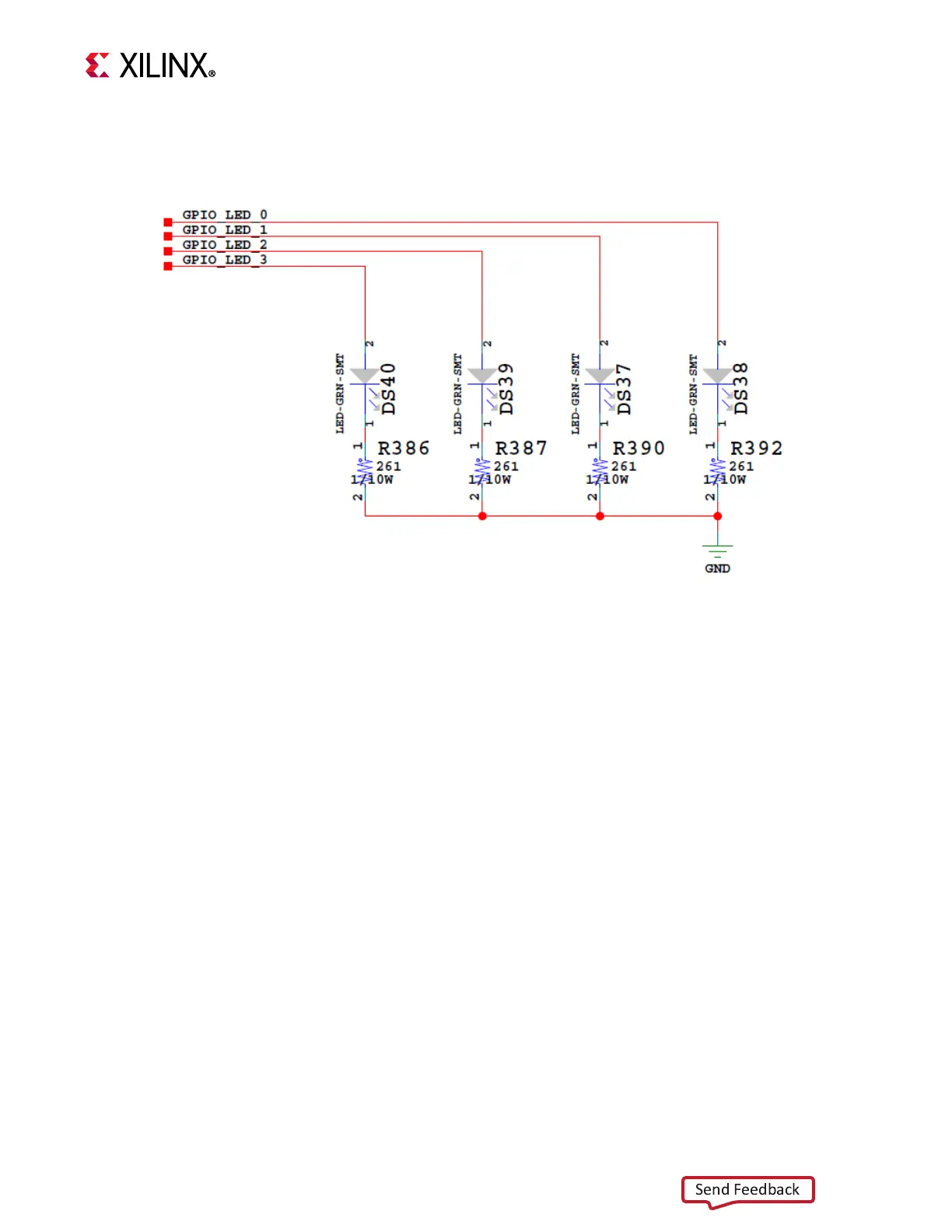

Figure 3-22: GPIO LEDs
X20261-020118
