Chapter 3: APU Software Platform
Stream Out
The Stream Out panel allows you to configure streaming parameters. See Figure 3-13 and
Tab le 3 -5 .
Note:
IDR is not user configurable. In the encoder code, the idr value = gop-length.

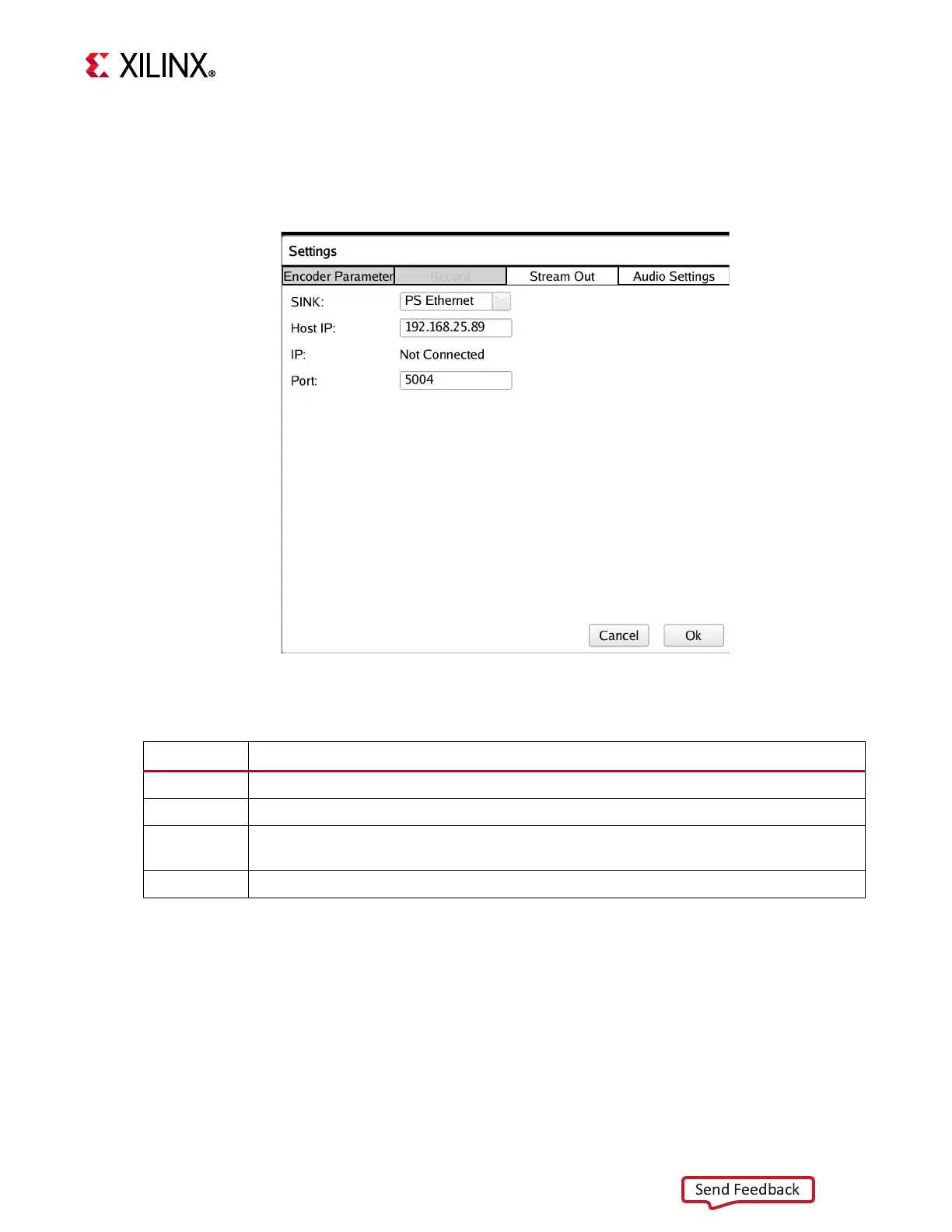

X-Ref Target - Figure 3-13
Figure 3-13: Stream Out Panel
Table 3-5: Stream Out Panel Settings
Parameter Setting
SINK Provides the sink option for the stream out case. It is set to PS Ethernet.
Host IP Provides the option to enter the Host IP address.
IP Shows the IP address of the board if the Ethernet link is up. If no Ethernet link is
connected, it shows Not Connected.
Port Port number of the Ethernet link. The default is 5004.
X19921-112718
