Xinje DF3E Series

35

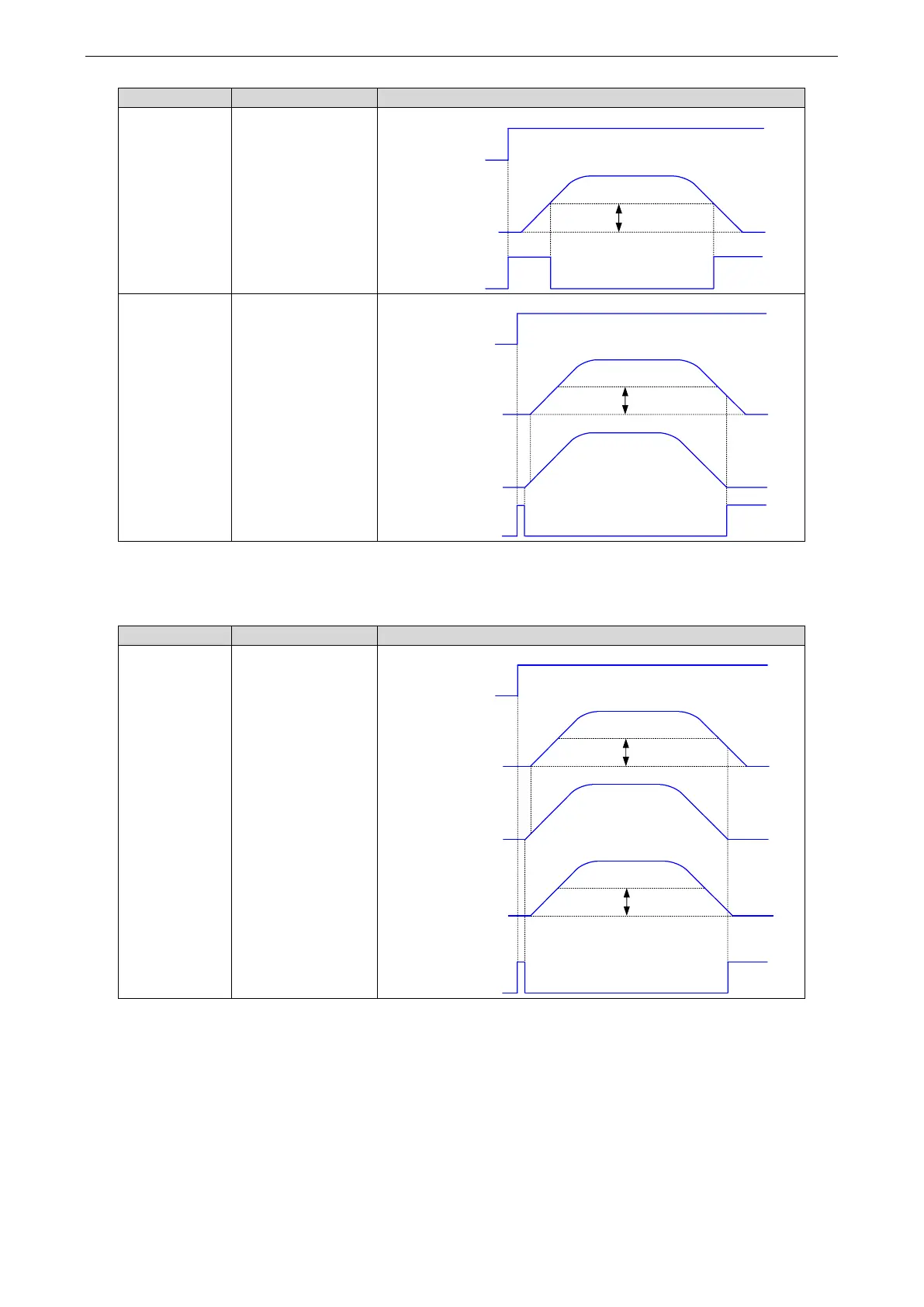

P5-01 setting
Content
Diagram
0
If the absolute
deviation is below
P5-00, the COIN
signal will be
output.
｜U0-08｜
Pulse offset
/COIN
signal
ONON
OFF
P5-00
ON
/S-ON
signal
1
After the
instruction is
finished, the
deviation is below
P5-00 and COIN
signal is output.
｜U0-08｜
Pulse offset
P5-00
ON
/S-ON
Signal status
/COIN
Signal status
ONON
OFF
｜ΔU0-12｜
Pulse command
P5-01 setting
Content
Diagram
2
When the
instruction ends
and the motor
speed is under the
rotation detection
speed (P5-03) and
the absolute
deviation is less
than P5-00, the
COIN signal is
output.
｜U0-08｜
Pulse offset
P5-00
ON
/S-ON
Signal status
/COIN
Signal status
ONON
OFF
｜ΔU0-12｜
Pulse command
｜U0-00｜
Actual speed
P5-03
