Xinje DF3E Series

90
◼ Mode 18

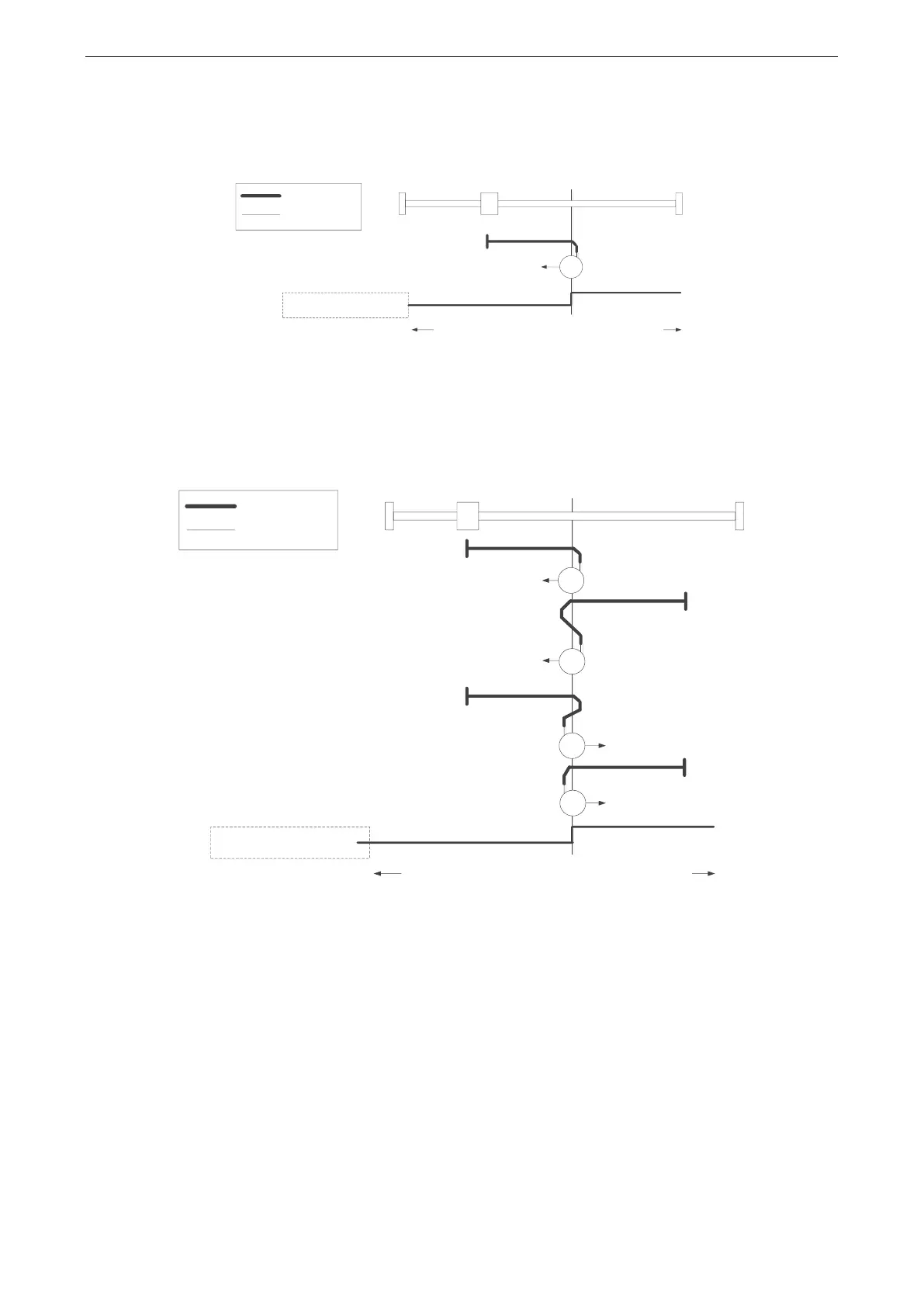

This method is similar to mode 2.
The difference is that the location of origin detection is not Index pulse, but the location of Limit switch changed.
(please refer to the figure below)
When POT is not allocated, Homing error = 1.
6099h-01h
6099h-02h
Positive Limit
Positive direction
Negative direction
Homing on positive limit switch
18
◼ Mode 19, 20
This method is similar to mode 3, 4.
The difference is that the detection position of the origin is not the Index pulse, but the changed position of the
Home switch.
(please refer to the figure below)
When HOME is not allocated, Homing error = 1.
6099h-01h
6099h-02h
19
Home Switch
Positive direction
Negative direction
Homing on positive home switch
3
4
4
19
20
20
◼ Mode 21, 22
This method is similar to mode 5, 6.
The difference is that the detection position of the origin is not the Index pulse, but the changed position of the
Home switch.
(please refer to the figure below)
When HOME is not allocated, Homing error = 1.
