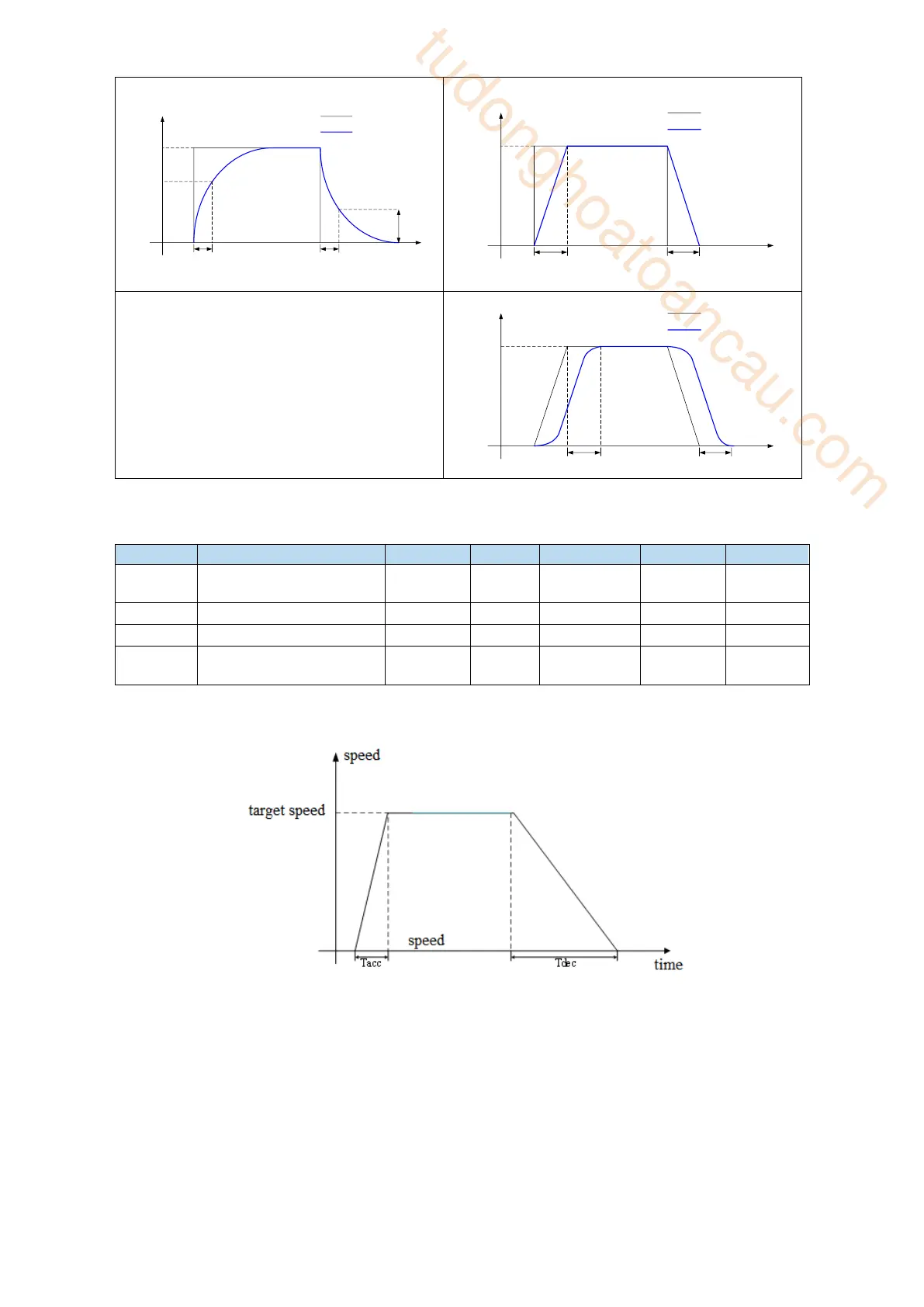

P1-24
P1-24
63.2%
100%
36.8%
Command pulse
frequency
T
Before filtering
After filtering
P1-25
P1-25
100%
Command pulse
frequency
T
Before filtering
After filtering
P1-25
P1-25
100%
Command pulse
frequency
T
Before filtering
After filtering
2. Firmware 3770 and after versions
Related parameters
Parameter
meaning
default
unit
range
modify
effective
P1-23
Speed command filtering
time constant
0
0.1ms
065535
servo bb
at once
P3-09
acc time
200
1ms
065535
servo bb
at once
P3-10
dec time
200
1ms
065535
servo bb
at once
P3-11
Moving average filtering
time constant
0
0.1ms
065535
servo bb
at once
Firstly, set P3-09 and P3-10. Plan the acceleration and deceleration time of the speed command.
Among them, the acceleration time Tacc=(target speed/rated speed) * P3-09 [ms], and the deceleration
time Tdec=(target speed/rated speed) * P3-10 [ms].
Set an appropriate sliding average filtering time constant P3-11 (S-type acceleration and deceleration
time constant). Ts = P3-11*0.1[ms].
