Xinje TP Series User Manual

15

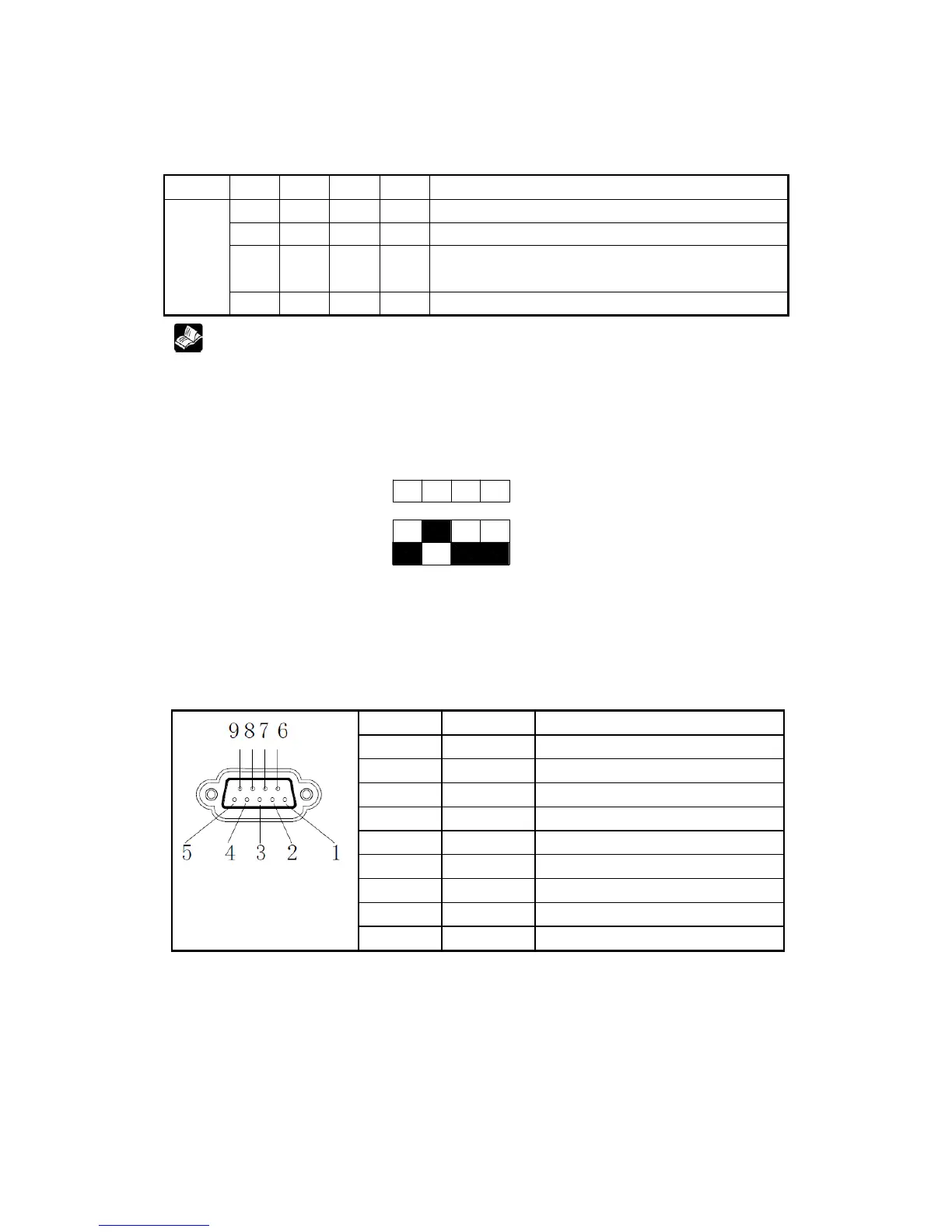

1. DIP switch
TH series has 4-bit DIP switch at the back side; they can set the function of COM1 port.
Switch
DIP1
DIP2
DIP3
DIP4
Function
State
OFF
OFF
OFF
ON
Interior check mode ( not recommended to users)
OFF
ON
OFF
OFF
Force-download mode
OFF
OFF
ON
OFF
System menu： Adjust clock and touch panel,
Import program of U disk
ON
OFF
OFF
OFF
Undefined
If the screen cannot show normally after downloading the program, please use
force-download to update the system.
Steps:
(1) Cut off the power of TH, turn ON DIP switch 2;
(2) Power on TH, connect the download cable to PC to download the program;
(3) Turn OFF DIP switch 2 after finishing the download, repower on the TH.
1 2 3 4
ON
OFF
2. Communication interface
The COM1 and COM2 port of TH series has below function:
 Communication function: Connect to PLC, printer, inverter, meter, etc, used as
communication port.
The pins definition of COM1:
Pin
Name
Description
1
NC
Unused terminal
2
RXD
RS232 receive
3
TXD
RS232 send
4
A
RS485 + signal
5
GND
Signal ground
6
NC
Unused terminal
7
B
RS485 — signal
8
NC
Unused signal
9
NC
Unused signal
