Xinje TP Series User Manual

14
I
nterface
COM1
RS232/RS485/RS422
COM2
RS232
RS232/RS485
Expand port
-
RS485
-
USB 1
USB-A (accord with USB2.0)
USB 2
USB-B (accord with USB2.0)
2-3 Hardware
2-3-1 Hardware structure

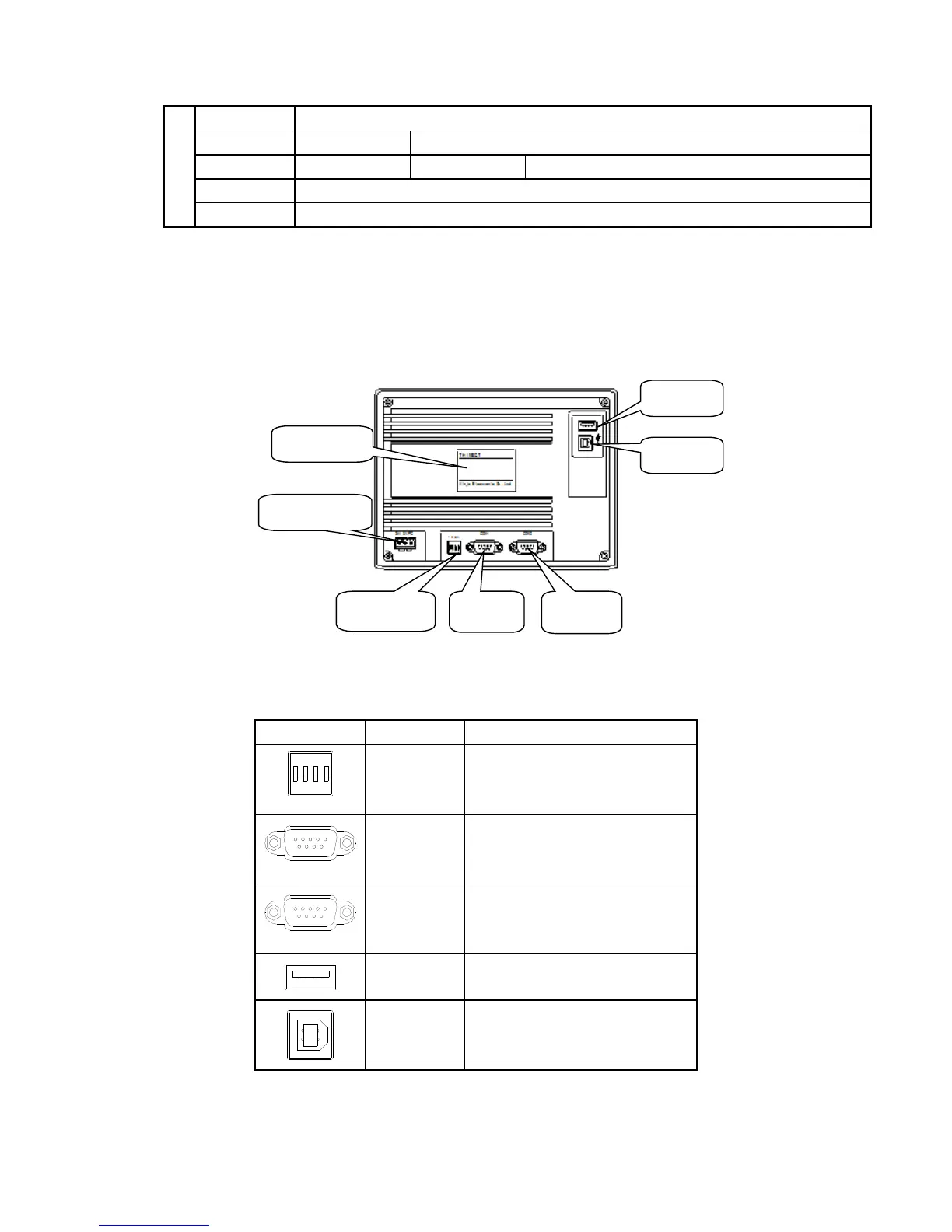

Below is the back side of TH series HMI:
2-3-2 Port introduction
TH series HMI port:
Outline
Name
Function
1 2 3 4
1 2 3 4
DIP switch
Force-download, touch area
adjustment
Download
COM 1
RS232/RS485 communication
PLC
COM 2
RS232/RS485/RS422
communication
USB-A
Connect to U disk
USB-B
Connect USB cable to
download/upload program
Nameplate
Power supply
COM 1
COM 2
USB-B
DIP switch
USB-A
