2-4-2 Installation and using environment
Install requirements:
TH has four ferric mounting racks when out of factory, there are two square holes on the
up, down side of TH, use mounting rack to fix the TH with control cabinet.

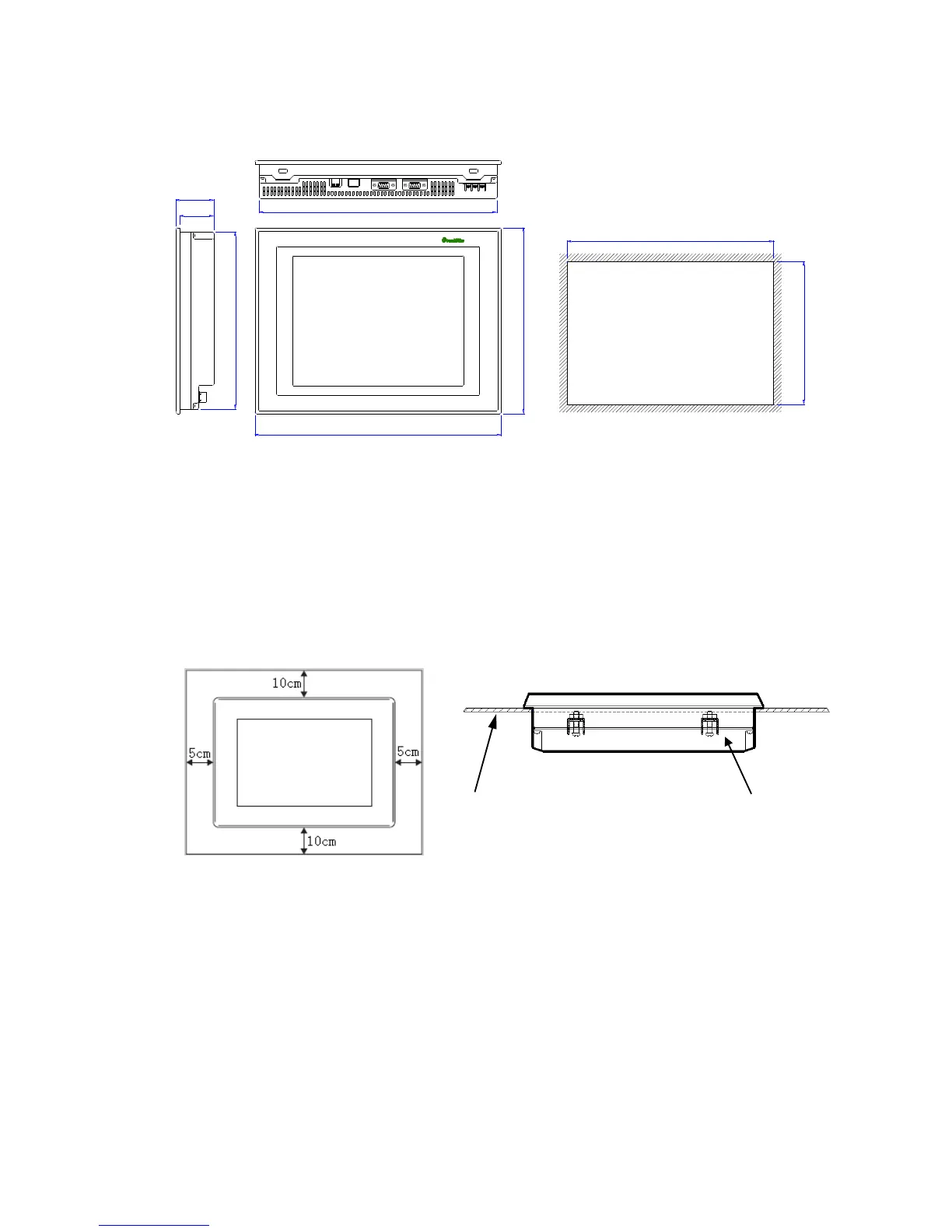

In order to avoid TH temperature too high after long time working, please keep 10cm
space on the up/down and 5cm on the left/right side of the TH when installing.
Install steps:
1. Refer to the dimension in the former chapter to open a rectangle mounting hole in
the control cabinet;
2. Add airproof circles in the airproof slot when installing;
3. Insert the bottom of TH into the mounting hole of control cabinet;
4. Insert the install rack into the fix hole of TH then tighten the screw;
5. Connect TH and PLC with communication cable.
Notice: The communication cable can be offered by the supplier or made by user
according to the connection diagram, input +24V DC power to start working
