Xinje TP Series User Manual

28
1 2 3 4
1 2 3 4
Download
PLC
24V 0V FG

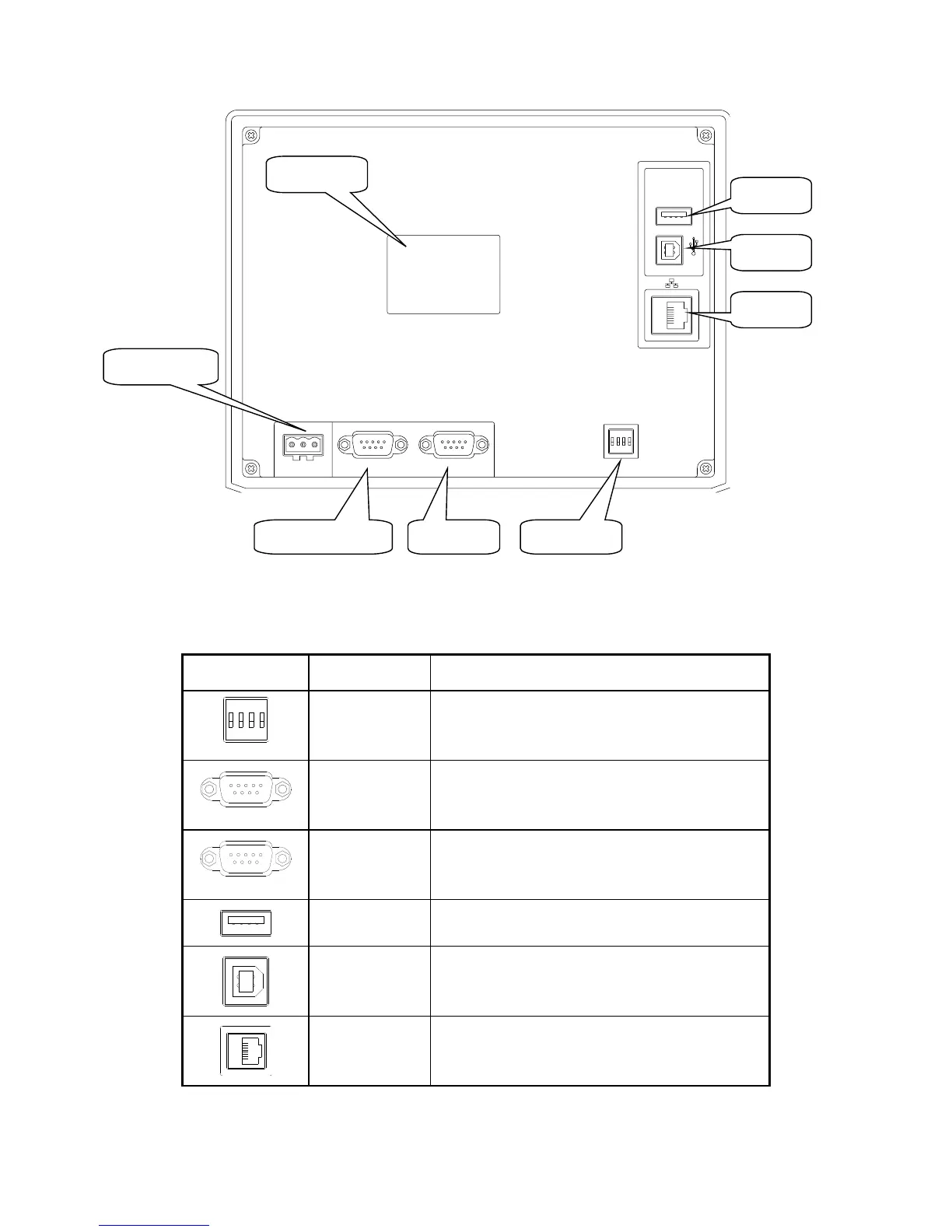

3-3-2 Ports introduction
TG series HMI port:
Outline
Name
Function
1 2 3 4
1 2 3 4
DIP switch
Force-download, touch area adjustment
Download
Download port
RS232/RS485
PLC
PLC port
RS232/RS485/RS422
USB-A
Connect to USB flash drive
USB-B
Connect USB cable to download/upload
program
Ethernet port
Support TBOX, Siemens S7-1200 and other
devices which support Modbus-TCP protocol
Nameplate
Power supply
Download port
PLC port
USB-B
DIP switch
USB-A
RJ45
