4. Insert the install rack into the fix hole of TH then tighten the screw;
5. Connect TH and PLC with communication cable.
Notice: The communication cable can be offered by the supplier or made by user
according to the connection diagram, input +24V DC power to start working
Environment:
Please use TG series touch screen indoor.
Do not use TG in below environment:
Inflammable gas, steam, dust, fast vary temperature, high humidity (it may cause
moisture inside TG).
Power supply requirements:
TG series touch screen use DC +24V power supply only. The permitted voltage range

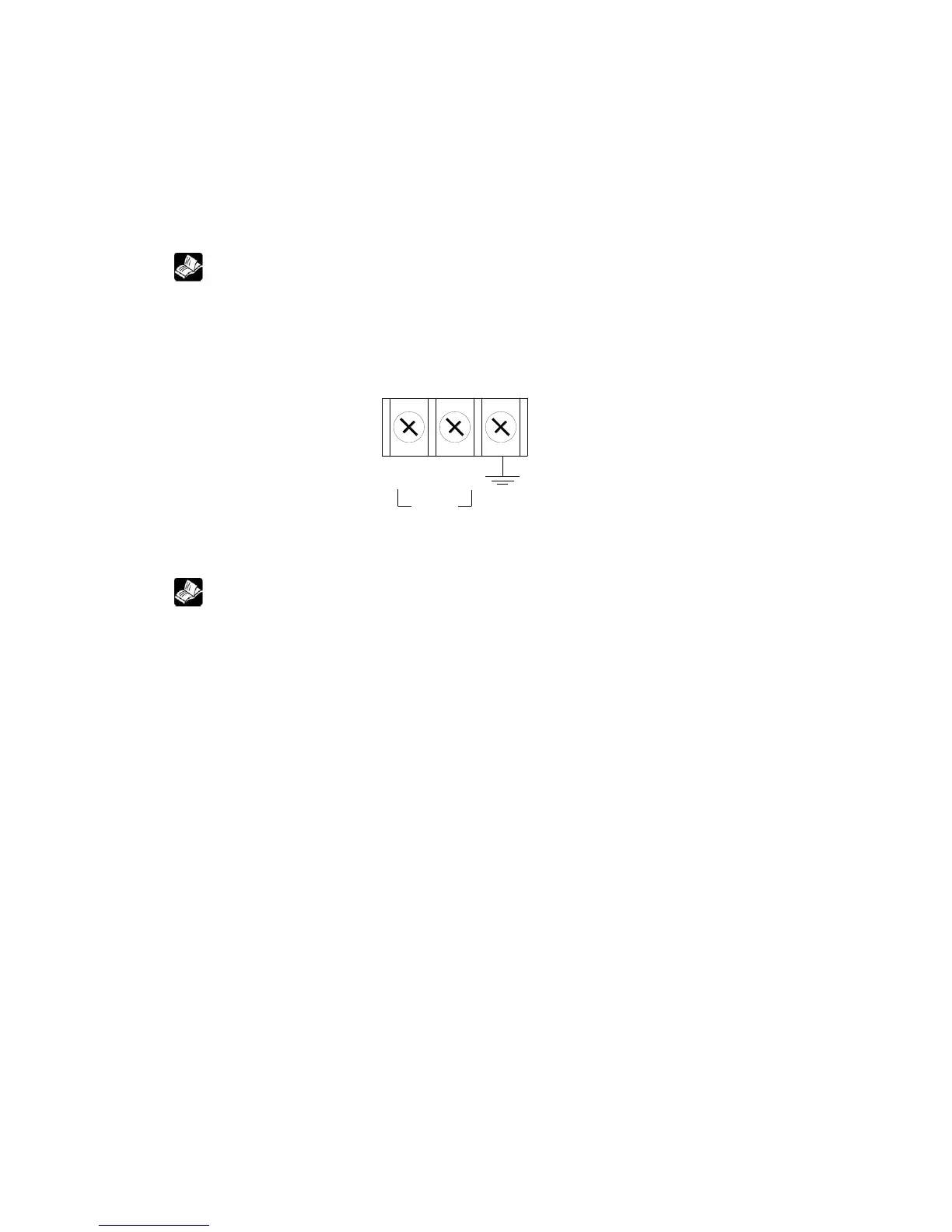

is 20V~26V. The connection is as below:
Besides, if connect high voltage or AC power supply with TG, the TG may be
damaged and cause electric shock to human body.
If use the DC +24V output of PLC, make sure the PLC has enough current to
drive the TG.
+24V
0 V
+DC-
