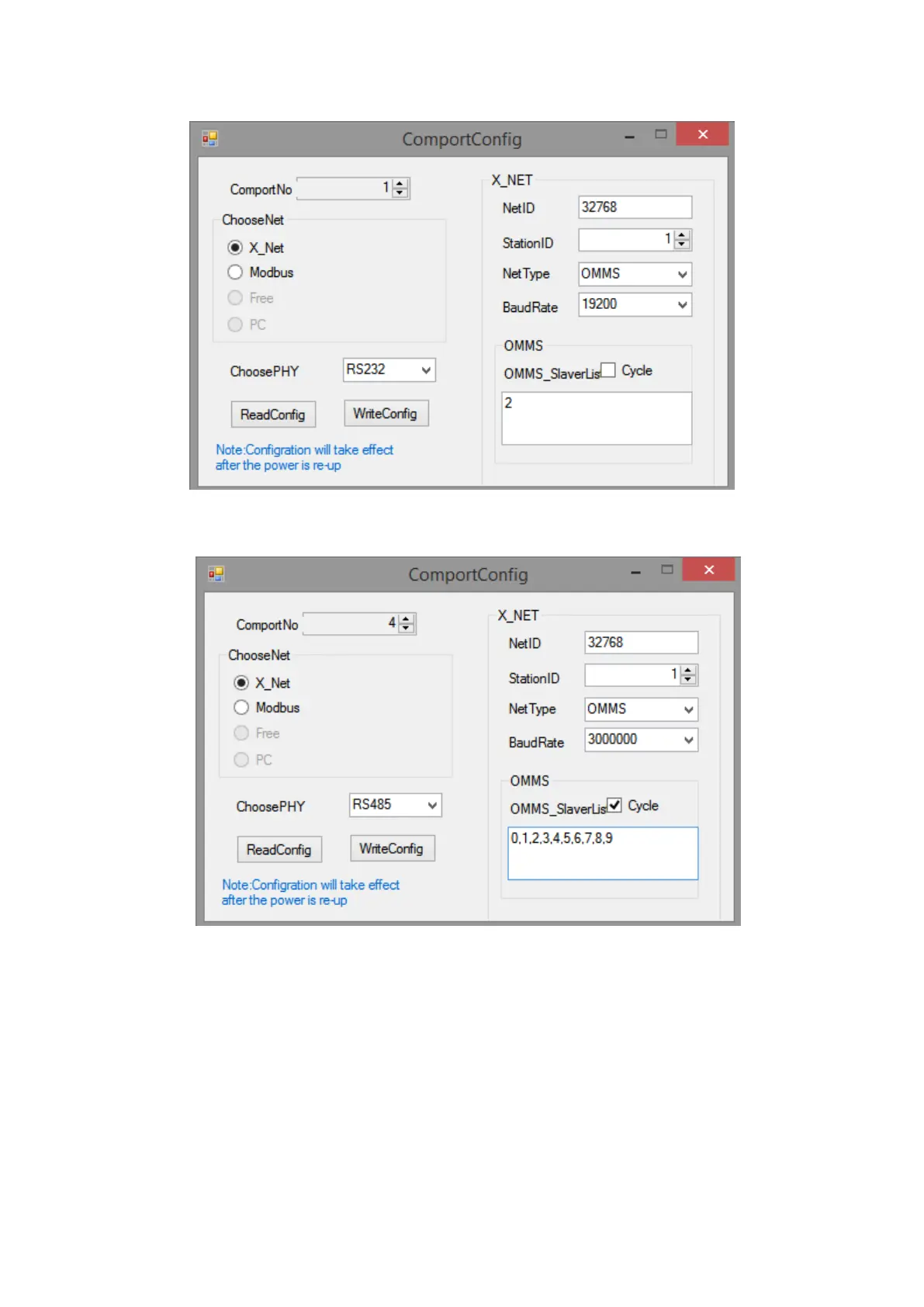

6. As the PLC RS485 BD board is serial port 4, here please set the comport to 4. The net
type is X-NET. The PHY please set to RS485.
NetID: the network number of all the devices must be consistant in the same network. The
network number can be set to any value.
Station ID: the PLC station no.
Net type: Please select OMMS when the PLC communicates with servo drive.
Baud rate: depend on the servo baud rate.
Cycle: PLC communicate with servo in cycle.
OMMS slaver list: keep default or set the slave station no.
